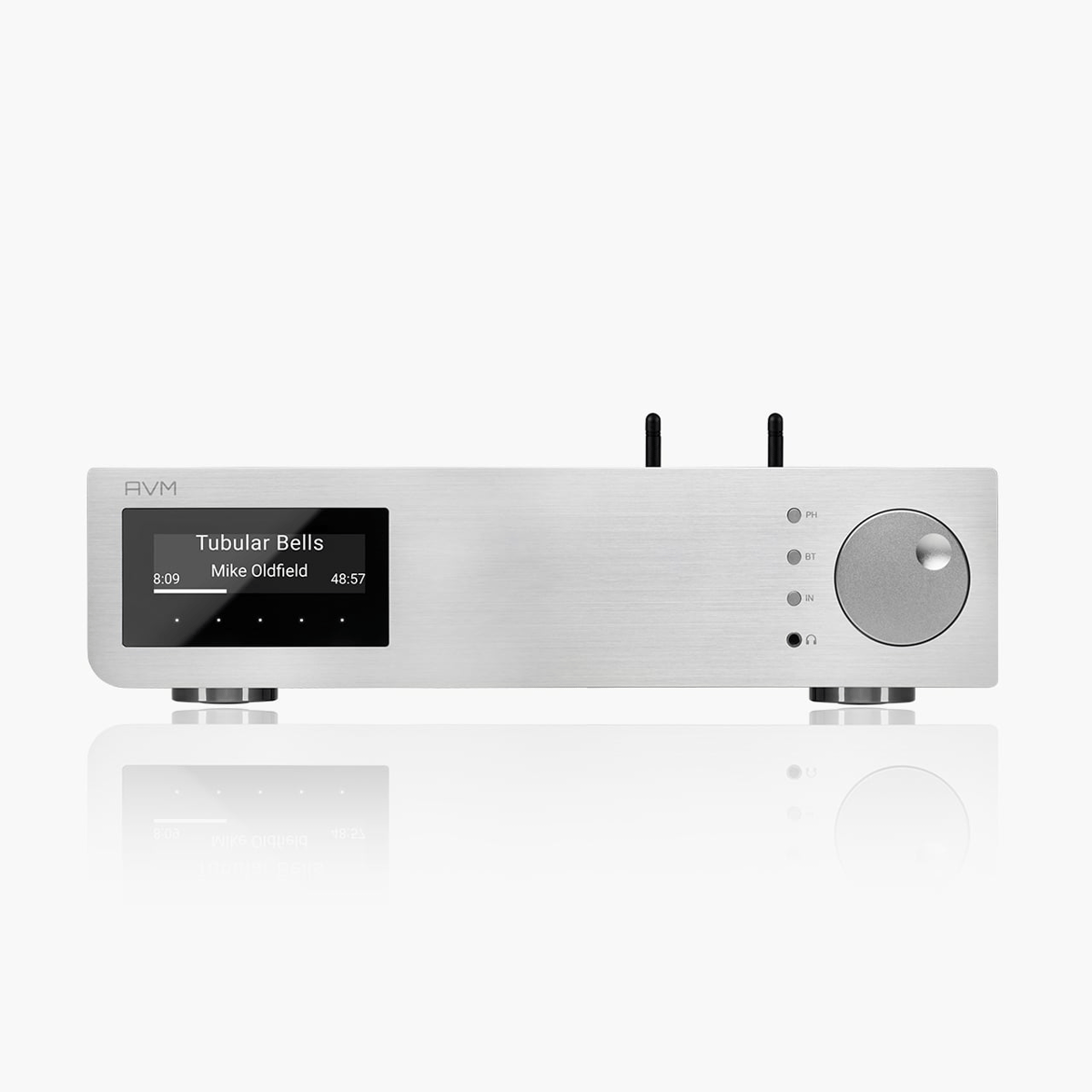

AVM Audio Inspiration AS 2.3
Inspiration AS 2.3
Integrated Amplifier with Streaming
Full amplifier with 2 x 140 W · X-STREAM Engine® for HiRes Streaming incl. DSD (256), controllable via RC X App · Prepared for Spotify Connect, QOBUZ, TIDAL Connect, HiResAudio · Web radio · High-Performance Phono Input (MM & MC) · HDMI (ARC) input · Airplay 2 · Roon Ready · Bluetooth 5.0
An amplifier with no ifs, ands or buts
With decades of experience in developing compact, sound-strong all-in-one devices, the AS 2.3 was created based on the AVM X-STREAM Engine®. This high-performance model combines state-of-the-art technology with a minimalist, screw-free aluminum case, inspired by the flagship CS 8.3.
Comprehensive connectivity for limitless streaming sessions
The AS 2.3 has all the modern connections: HDMI ARC for TVs, Bluetooth 5.0, USB A and digital and analogue inputs. Special highlights are the precise phono input stage for MM and MC as well as the newly integrated digital outputs with volume control.
Advanced app control and future-proof streaming
The redesigned RC X App allows for intuitive control and easy management of large music collections. Thanks to the AVM X-STREAM Engine® high-resolution formats like DSD (256) are supported, and software updates ensure the system’s future viability in the long term.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
Forum Mentions
No forum mentions found yet
Specifications
- Power amplifier
- Gain factor: 30 Distortion factor: < 0.005% Signal-to-noise ratio: > 95dB Input sensitivity: 275 mV Frequency response (-3dB): < 5Hz to > 80kHz Output power (1% THD, 4 Ohm, 2 Channel): 2 x 140W
- Preamplifier (Pre-Out)
- Input impedance: 3.4 kΩ Output impedance: 470 Ω Gain factor: 1 Distortion factor: < 0.001% Signal-to-noise ratio: > 100dB Frequency response (-3dB): < 5Hz to > 80kHz Crosstalk attenuation (channels): > 95dB Crosstalk attenuation (inputs): > 85dB Input headroom (1% THD): 3.5 V Output headroom (1% THD): 3V
- Preamplifier (Line-Out)
- Output impedance: 47 Ω Gain factor: 1 Distortion factor: < 0.001% Signal-to-noise ratio: > 100dB Output headroom (1% THD): 3.5 V
- Preamplifier (Headphone-Out)
- Output impedance: 80 Ω Gain factor: 4 Distortion factor: < 0.001% Signal-to-noise ratio: > 100dB Output headroom (1% THD): 4.5 V
- Preamplifier (Phono)
- RIAA equalization: < 0.2dB Gain MM: 40dB Signal-to-noise ratio MM: > 83dB(A) Gain MC: 60dB Signal-to-noise ratio MC: > 74dB(A) Input headroom MM (1% THD): 30 mV Input headroom MC (1% THD): 3 mV
- CD-Player (only CS 2.3)
- Playable formats: CD Audio, CDR (according to Red-Book standard) Frequency response CD: < 20 – 20 kHz
- Network
- LAN connection (hot-plugging capable): 100Mbit/s Supported WLAN/WiFi standards: 2.4 / 5 GHz 802.11a/b/g/n/ac Number of antennas: 2 WPS: yes
- Streaming
- Max. sampling rates: DSD256, 32Bit/384kHz PCM Streaming services: AirPlay, Qobuz, Roon Ready, Spotify, TIDAL Connect MAX, HighResAudio Supported file formats: WAV, MP3, WM, AAC, FLAC, ALAC, DSD, Ogg, AIFF
- Bluetooth
- Bluetooth standard: 5.0 LE Supported Bluetooth profiles: AVRCP 1.5 AD2P
- USB Input (Rear)
- USB standard: USB 2.0 Max. current: 500 mA Supported formats: FAT16, FAT 32, NTFS
- Digital inputs (S/P-DIF/Coaxial)
- Max. sampling/bit rate (OPTO): 96 kHz / 24 Bit Deemphasis (OPTO): Yes, automatic Max. sampling/bit rate (COAX): 192 kHz / 24 Bit Min. signal level [Vpp] at 195kHz (COAX): > 150 mVpp Input impedance (COAX): 75 Ω Deemphasis (OPTO): Yes, automatic Max. sampling/bit rate (ARC): 192 kHz / 24 Bit Input impedance: 100 Ω
- Digital outputs (S/P-DIF/Coaxial)
- Max. sampling/bit rate (OPTO): 96 kHz / 24 Bit Max. sampling/bit rate (COAX): 192 kHz / 24 Bit Output impedance (COAX): 75 Ω
- Power consumption
- Standby: < 0.5 Watt Extended standby (network connection): < 2 Watt Idle: < 16 Watt Fuse used: T 3.15A H
- General
- Mains voltage and frequency: 100 – 240V / 50 – 60Hz Operating altitude: Up to 2000m Allowed temperature range: 20 – 30°C Weight: 7.1 kg Dimensions (WxHxD): 340 x 92 x 325 Warranty: 2 years (+ 2 years with online registration*)
Manufacturer's Description — AVM Audio
Inspiration AS 2.3
Integrated Amplifier with Streaming
Full amplifier with 2 x 140 W · X-STREAM Engine® for HiRes Streaming incl. DSD (256), controllable via RC X App · Prepared for Spotify Connect, QOBUZ, TIDAL Connect, HiResAudio · Web radio · High-Performance Phono Input (MM & MC) · HDMI (ARC) input · Airplay 2 · Roon Ready · Bluetooth 5.0
An amplifier with no ifs, ands or buts
With decades of experience in developing compact, sound-strong all-in-one devices, the AS 2.3 was created based on the AVM X-STREAM Engine®. This high-performance model combines state-of-the-art technology with a minimalist, screw-free aluminum case, inspired by the flagship CS 8.3.
Comprehensive connectivity for limitless streaming sessions
The AS 2.3 has all the modern connections: HDMI ARC for TVs, Bluetooth 5.0, USB A and digital and analogue inputs. Special highlights are the precise phono input stage for MM and MC as well as the newly integrated digital outputs with volume control.
Advanced app control and future-proof streaming
The redesigned RC X App allows for intuitive control and easy management of large music collections. Thanks to the AVM X-STREAM Engine® high-resolution formats like DSD (256) are supported, and software updates ensure the system’s future viability in the long term.
