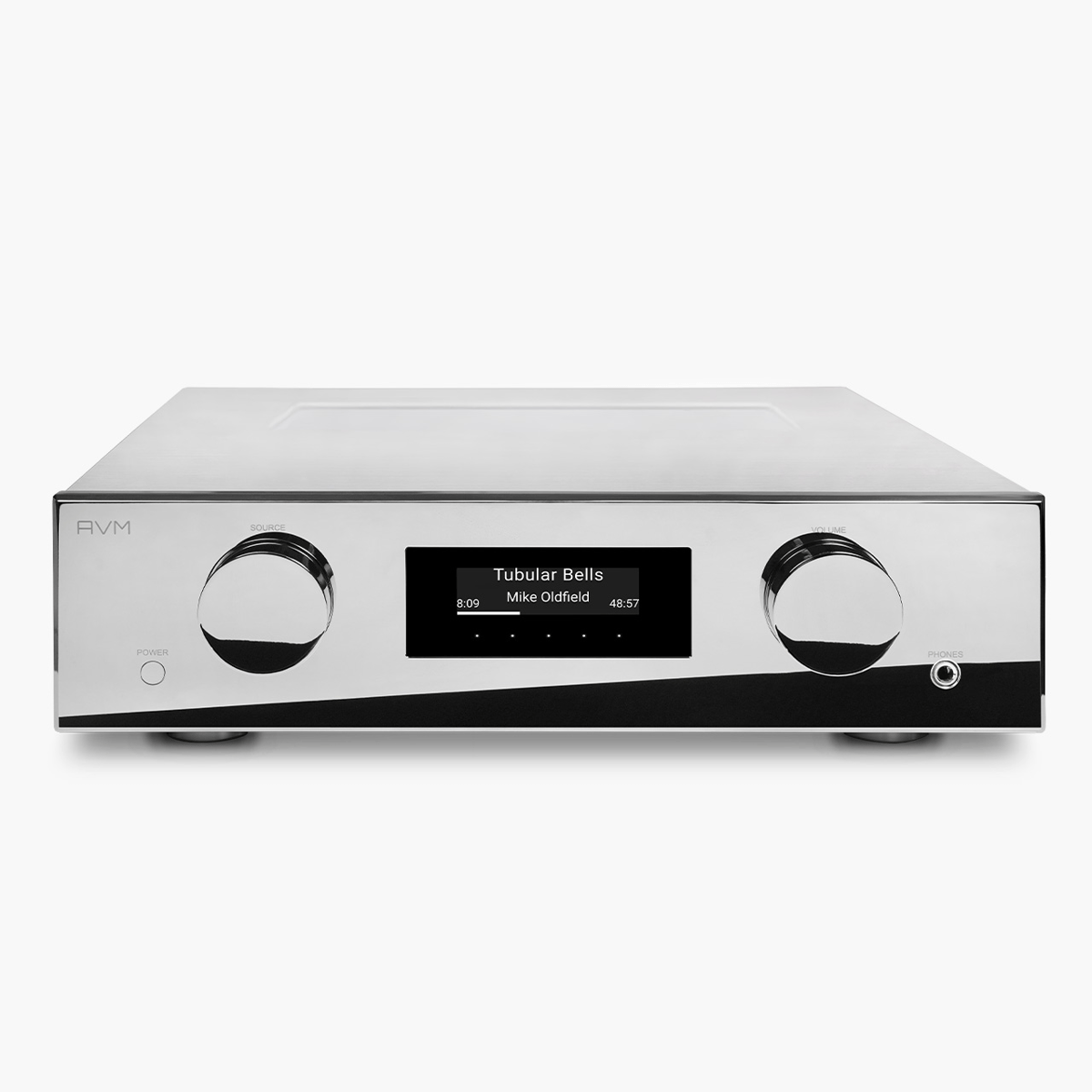

AVM Audio Evolution PAS 3.3 + 5.3
Analog Preamplifier with AVM X-STREAM Engine®: AirPlay, Spotify® Connect, Roon Ready, TIDAL Connect MAX, QOBUZ, UPnP, Web Radio AVM RoomConneXion® Multiroom Mode · Double Quad DAC for Max. 384/32 PCM · DSD256 · Phono Input MM / MC · RC 3 Aluminum Remote Control
The essence of
audiophile perfection
The AVM Evolution PAS 5.3 + PAS 3.3 preamplifiers combine traditional tube technology with innovative designs to deliver exceptional sound quality. The PAS 5.3 uses specially selected and carefully tuned 803T type tubes, which ensure a warm, dynamic, and detailed sound. The special circuit topology minimizes harmonic distortions, thus reproducing every musical detail precisely and authentically.
Flexibility and control for demanding audio enthusiasts
With the PAS 5.3 and PAS 3.3, you experience maximum control over your music. Both models are equipped with a high-precision, motor-driven volume control that allows even the smallest adjustments. Numerous analog inputs (RCA and XLR) make the preamplifiers compatible with a variety of source devices. In addition, the device can be fully controlled via the included AVM RC S app, guaranteeing intuitive operation.
The AVM Evolution series is not only an acoustic marvel but also a visual masterwork. The solid aluminum housings of the PAS 5.3 and PAS 3.3 not only provide a chic look but also optimal shielding against external interference. The high-quality workmanship and minimalist design make these preamplifiers a standout in any listening room. With a separate power supply for highest signal purity and a fully modular construction, these devices offer not only excellent sound but also durability and easy maintenance.
Technical data
PAS 5.3
Power amplifier (Only CS AND AS models) | |
| Gain factor | 30 |
| Distortion factor | < 0.005% |
| Signal-to-noise ratio | > 95dB |
| Input sensitivity (2x350W, 4Ω) | 1.2 V |
| Output power | 2x 350W (4Ω) / 2x 180W (8Ω) |
Preamplifier (analog) | |
| Input impedance (RCA) | 50 kΩ |
| Input impedance (XLR) | 40 kΩ |
| Output impedance (RCA: PRE, LINE) | 47 Ω |
| Output impedance (XLR) | 94 Ω |
| Gain factor | 1 |
| Distortion factor (3.3) | < 0.001% |
| Distortion factor (5.3) | < 0.025% |
| Signal-to-noise ratio | > 100dB |
| Crosstalk attenuation (channels) | > 94dB |
| Crosstalk attenuation (inputs) | > 85dB |
| Input headroom (1% THD) | 8.4 V |
| Output headroom PRE OUT (1% THD) | 8.5 V |
| Output level LINE OUT | 2.5 V |
| Frequency response at -3dB (3.3) | < 0Hz to > 100kHz |
| Frequency response at -3dB (5.3) | < 5Hz to > 100kHz |
Headphone amplifier | |
| Output impedance | 24 Ω |
| Gain factor | 2.0 |
| Distortion factor | < 0.001% |
| Signal-to-noise ratio | > 100dB |
| Output headroom (1% THD) | 7 V |
Preamplifier (Phono) | |
| RIAA equalization (20Hz-20kHz) | +/-0.3dB |
| Gain MM | 40dB / 50dB |
| Signal-to-noise ratio MM | > 84dB(A) |
| Gain MC | 60dB / 70dB |
| Signal-to-noise ratio MC | > 75dB(A) |
| Input headroom MM (1% THD, 40dB) | 76 mV |
| Input headroom MC (1% THD, 60dB) | 7.4 mV |
| Frequency response (Line-Out) | 11Hz – 100kHz |
| Adjustable resistance values MC (in Ω) | 100; 180; 220; 330; 660; 1k; 2k |
| Adjustable capacitance values MM (in pF) | 47; 100; 150; 200; 270; 310; 410 |
CD-Player (ONLY CS MODELS) | |
| Playable formats | CD Audio, CDR (according to Red-Book standard) |
| Frequency response CD | < 20 – 20 kHz |
Network | |
| LAN connection (hot-plug capable) | 100 Mbit/s |
| Supported WLAN/WiFi standards | 2.4 / 5GHz / 802.11a/b/g/n/ac |
| Number of antennas | 2 |
| WPS | yes |
Streaming | |
| Max. sampling rates | DSD256, 32 Bit/384 kHz PCM |
| Streaming services | AirPlay, Qobuz, Roon, Spotify, TIDAL, HighResAudio |
| Supported file formats | WAV, MP3, WM, AAC, FLAC, ALAC, DSD, Ogg, AIFF |
Bluetooth | |
| Bluetooth standard | 5.0 |
| Supported Bluetooth profiles | AVRCP 1.5, AD2P |
USB Input (Rear) | |
| USB standard | USB 2.0 |
| Max. current | 500 mA |
| Supported formats | FAT16, FAT32, NTFS |
| WARNING: | The USB input is exclusively for hard drives and USB sticks! |
Digital inputs (S/P-DIF/Coaxial) | |
| Max. sampling/bit rate (OPTO) | 96 kHz / 24 Bit |
| Max. sampling/bit rate (COAX) | 192 kHz / 24 Bit |
| Min. signal level [Vpp] at 192kHz (COAX) | > 150 mVpp |
| Input impedance (COAX) | 75 Ω |
| Deemphasis (OPTO, COAX) | Yes, automatic |
| Max. sampling/bit rate (ARC) | 192 kHz / 24 Bit |
| Input impedance | 75 Ω |
| NOTE: | When using digital inputs |
Digital outputs (S/P-DIF/Coaxial) | |
| Max. sampling/bit rate (OPTO) | 96 kHz / 24 Bit |
| Max. sampling/bit rate (COAX) | 192 kHz / 24 Bit |
| Output impedance (COAX) | 75 Ω |
| NOTE: | When using digital outputs |
Control | |
| Trigger input | 5 – 20V |
| Trigger output (2x) | 12V (sequentially switched) |
| NOTE: | The second trigger-out is delayed from the first trigger-out to protect against excessive current surges. Please use a standard 3.5mm mono jack cable for the trigger connections. |
Power connection (CS/AS 3.3/5.3) | |
| Power supply | 100V-240V / 50Hz-60Hz |
| Power consumption standby | < 0.5 Watt |
| Power consumption network standby | < 2 Watt |
| Power consumption idle | < 25 Watt |
| Power consumption maximum | 1000 Watt |
| Fuse used | T 10A |
Power connection (PAS 3.3/5.3) | |
| Power supply | 100V-240V / 50Hz-60Hz |
| Power consumption standby | < 0.5 Watt |
| Power consumption network standby | < 2 Watt |
| Power consumption idle | < 16 Watt |
| Power consumption maximum | 25 Watt |
| Fuse used | T 1A |
General | |
| Weight (CS/AS 3.3/5.3) | 11 kg |
| Weight (PAS 3.3/5.3) | 8 kg |
| Dimensions (WxHxD) | 430 x 122 x 350 mm |
| Warranty | 2 years + 2 years with online registration |
| *Warranty periods may vary in different distribution countries. | |
We reserve the right to make changes to technical specifications and features. | |
Download
Technical data
PAS 5.3
Regulatory Note:
Used transmission frequency range:
WLAN 2.4 G: 2.412 – 2.472 GHz
WLAN 5: 5,150 – 5,350 GHz /
5.470 – 5.725 GHz
Bluetooth: 2,400 – 2,4835 GH
Maximum Transmission Power:
WLAN 2.4 G: 20 dBm
WLAN 5: 15 dBm
Bluetooth: 6 dB
⚠ The device is intended for non-commercial use.
⚠ The Ethernet/LAN port may only be connected to the home network (internal building LAN network).
