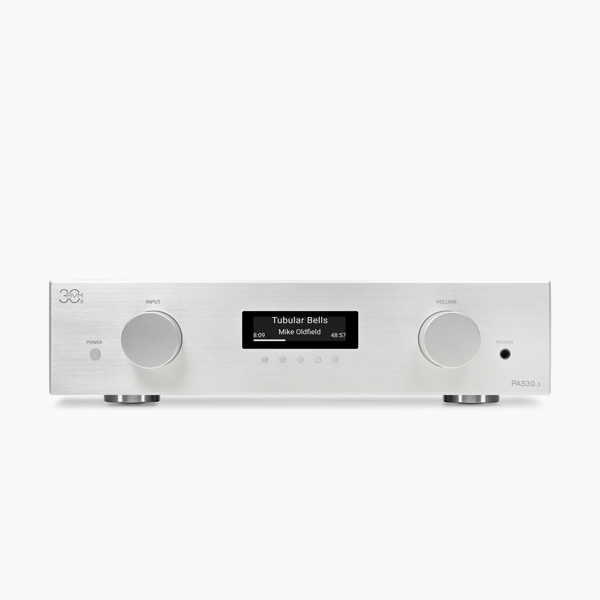

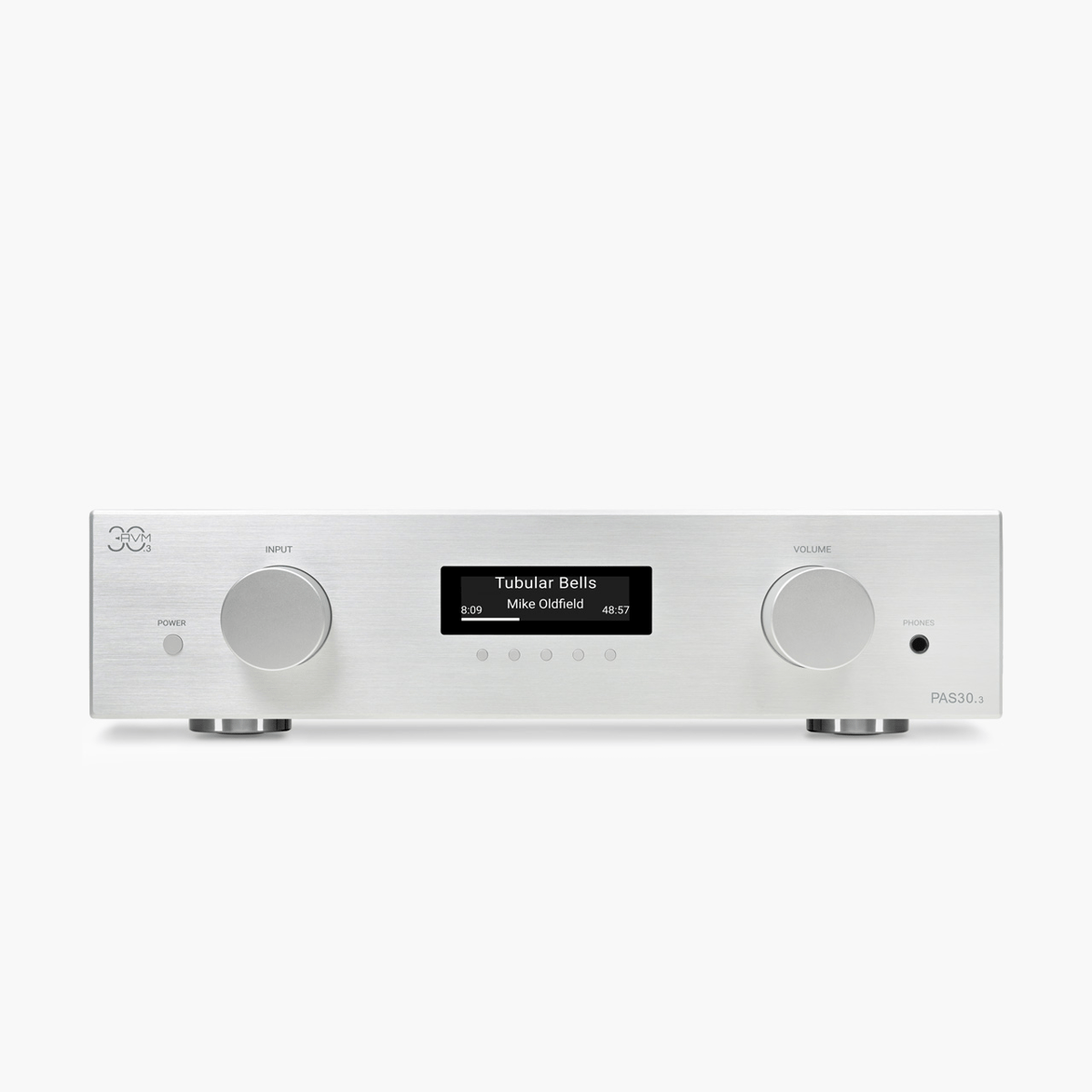

AVM30 PAS 30.3
AVM Audio AVM30 PAS 30.3
Pre-Amplfier with Streaming · AVM X-STREAM Engine®: Apple AirPlay 2,
Spotify® Connect, Roon Ready, TIDAL Connect MAX, QOBUZ, UPnP, Webradio · Multiroom & Party Sync Mode ·
Bluetooth 5.0 · High-End DAC 384kHz/32bit · DSD256 · Phono input MM / MC
Sophisticated design meets
cutting-edge technology
The PAS 30.3 preamplifier impresses with its timeless, minimalist design and a solid aluminum case. But behind the elegant facade is the latest technology: completely symmetrical signal paths and a thoughtful circuit guarantee maximum sound fidelity and an impressive dynamic range.
Exceptional sound quality
for every detail
With an amplifier power that reduces distortion to an absolute minimum (<0.0005% THD), the PAS 30.3 ensures exceptionally clear and detailed sound reproduction. Whether you’re enjoying high-resolution music or classic vinyl records, this preamplifier brings out the best from every source.
The PAS 30.3 is handmade in Germany and combines the highest precision with high-quality materials.
The AVM PAS 30.3 is the result of decades of experience in the development of audiophile technologies. Its fully balanced circuit design minimizes noise and ensures an incomparably clean sound image.
With its numerous connection options – including HDMI ARC, analog inputs, coaxial as well as optical digital input, phono MM/MC input and the typical AVM streaming functions (Spotify Connect, TIDAL Connect MAX, QOBUZ, HighResAudio, ROOn Ready, web radio,…) the PAS 30.3 offers enough connection options for all eventualities in the home pre/power amplifier combination.
Technical data
PAS 30.3
Power amplifier (Only AS and CS 30.3) | |
| Gain factor | 30 |
| Distortion factor | < 0.005% |
| Signal-to-noise ratio | > 95dB |
| Input sensitivity | 275 mV |
| Frequency response (-3dB) | < 5Hz to > 80kHz |
| Output power (1% THD, 4 Ohm, 2 Channel) | 2 x 125W |
Preamplifier (Pre-Out) | |
| Input impedance | 3.4 kΩ |
| Output impedance | 470 Ω |
| Gain factor | 1 |
| Distortion factor | < 0.001% |
| Signal-to-noise ratio | > 100dB |
| Frequency response (-3dB) | < 5Hz to > 80kHz |
| Crosstalk attenuation (channels) | > 95dB |
| Crosstalk attenuation (inputs) | > 85dB |
| Input headroom (1% THD) | 3.5 V |
| Output headroom (1% THD) | 3V |
Preamplifier (Line-Out) | |
| Output impedance | 47 Ω |
| Gain factor | 1 |
| Distortion factor | < 0.001% |
| Signal-to-noise ratio | > 100dB |
| Output headroom (1% THD) | 3.5 V |
Preamplifier (Headphone-Out) | |
| Output impedance | 80 Ω |
| Gain factor | 4 |
| Distortion factor | < 0.001% |
| Signal-to-noise ratio | > 100dB |
| Output headroom (1% THD) | 4.5 V |
Preamplifier (Phono) | |
| RIAA equalization | < 0.2dB |
| Gain MM | 40dB |
| Signal-to-noise ratio MM | > 83dB(A) |
| Gain MC | 60dB |
| Signal-to-noise ratio MC | > 74dB(A) |
| Input headroom MM (1% THD) | 30 mV |
| Input headroom MC (1% THD) | 3 mV |
CD-Player (only CS 30.3) | |
| Playable formats | CD Audio; CDR (according to Red-Book standard) |
| Frequency response CD | < 20 – 20 kHz |
Network | |
| LAN connection (hot-plugging capable) | 100Mbit/s |
| Supported WLAN/WiFi standards | 2.4 / 5 GHz 802.11a/b/g/n/ac |
| Number of antennas | 2 |
| WPS | yes |
Streaming | |
| Max. sampling rates | DSD256, 32Bit/384kHz PCM |
| Streaming services | AirPlay, Qobuz, Roon Ready, Spotify, TIDAL Connect MAX, HighResAudio |
| Supported file formats | WAV, MP3, WM, AAC, FLAC, ALAC, DSD, Ogg, AIFF |
Bluetooth | |
| Bluetooth standard | 5.0 LE |
| Supported Bluetooth profiles | AVRCP 1.5 AD2P |
USB Input (Rear) | |
| USB standard | USB 2.0 |
| Max. current | 500 mA |
| Supported formats | FAT16, FAT 32, NTFS |
| WARNING: | The USB input is exclusively for hard drives and USB sticks! |
Digital inputs (S/P-DIF/Coaxial) | |
| Max. sampling/bit rate (OPTO) | 96 kHz / 24 Bit |
| Deemphasis (OPTO) | Yes, automatic |
| Max. sampling/bit rate (COAX) | 192 kHz / 24 Bit |
| Min. signal level [Vpp] at 195kHz (COAX) | > 150 mVpp |
| Input impedance (COAX) | 75 Ω |
| Deemphasis (OPTO) | Yes, automatic |
| Max. sampling/bit rate (ARC) | 192 kHz / 24 Bit |
| Input impedance | 100 Ω |
| NOTE: | When using digital inputs |
Digital outputs (S/P-DIF/Coaxial) | |
| Max. sampling/bit rate (OPTO) | 96 kHz / 24 Bit |
| Max. sampling/bit rate (COAX) | 192 kHz / 24 Bit |
| Output impedance (COAX) | 75 Ω |
| NOTE: | When using digital outputs |
Power consumption (AS/CS 30.3) | |
| Standby | < 0.5 Watt |
| Extended standby (network connection) | < 2 Watt |
| Idle | < 16 Watt |
| Fuse used | T 3.15A H |
Power consumption (PAS 30.3) | |
| Standby | < 0.5 Watt |
| Extended standby (network connection) | < 2 Watt |
| Idle | < 16 Watt |
| Fuse used | T 3.15A H |
General | |
| Weight (AS/CS 30.3) | 6.9 kg |
| Weight (PAS 30.3) | 6.7 kg |
| Dimensions (WxHxD) (AS/CS 30.3) | 430 x 115 x 360 |
| Dimensions (WxHxD) (PAS 30.3) | 430 x 115 x 320 |
| Warranty | 2 years (+2 years with online registration*) |
| *Warranty periods may vary in different distribution countries. | |
We reserve the right to make changes to technical specifications and features. | |
Download
Technical data
PAS 30.3
Regulatory note:
Used frequency range:
WLAN 2.4 G: 2.412 – 2.472 GHz
WLAN 5: 5,150 – 5,350 GHz /
5.470 – 5.725 GHz
Bluetooth: 2.400 – 2.4835 GHz
Maximum transmission power:
WLAN 2.4 G: 20 dBm
WLAN 5: 15 dBm
Bluetooth: 6 dB
The device is intended for non-commercial users.
The Ethernet/LAN port may only be connected to the home network (internal building LAN network).
