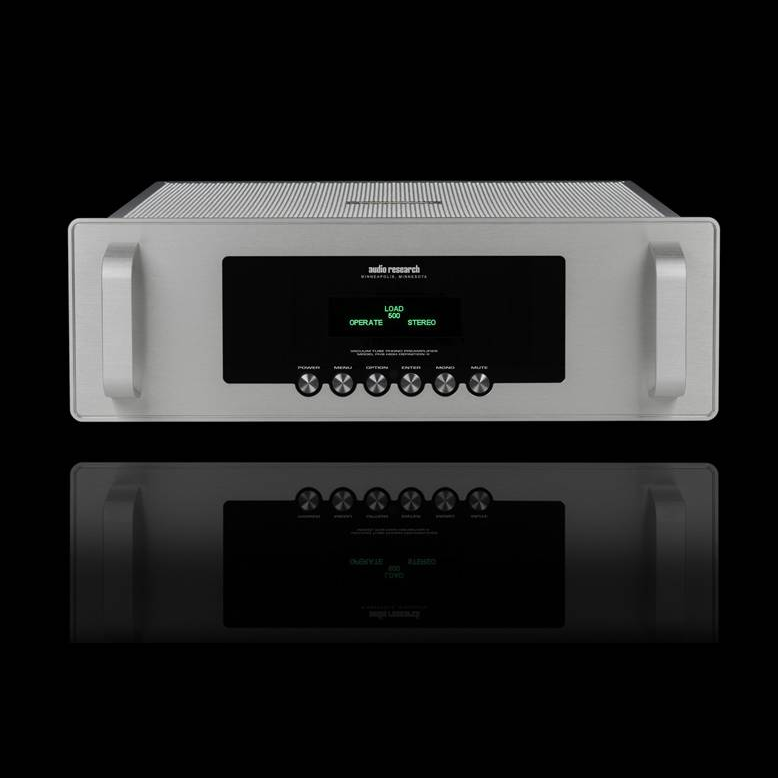

Audio Research PH9
PH9 provides class leading phono preamplification for the majority of cartridge and turntable combinations.

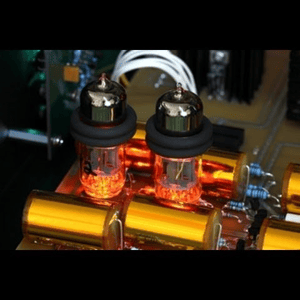

A trio of 6H30 vacuum tubes form the core of a simple and clear signal path. A classic Audio Research design, the PH9 revels in the vibrance and vitality with which tube gear excels, yet neutrally portrays the subtlest shadings in cartridge and tone-arm selections with transparency.
Five impedance settings
Five different impedance settings allow for cartridge loading, which can be changed on the fly with the included metal remote. Cartridge impedance, tube hours, auto shutdown, and other features are included in the menu system.
Since 1970, High Definition has been more than our trademark; it has been our guiding principle for all products. PH9 continues this passion and philosophy, offering the listener stunning playback, great value, and unparalleled long-term support.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
Forum Mentions
No forum mentions found yet
Specifications
- Frequency Response
- ±.2 dB of RIAA, 5 Hz to 20kHz; 1 dB points below 0.3Hz and above 80 kHz
- Distortion
- Less than .015% at 3V RMS 1kHz output
- Gain
- 58 dB at 1 kHz
- Input Impedance
- Selectable loads: 47k, 1000, 500, 200, 100 Ohms
- Output Impedance
- 200 ohms. Recommended load 50k-100k Ohms and 100 pF. (10k Ohms minimum and 2000 pF maximum).
- Output Polarity
- Non-inverting
- Maximum Input
- 80 mV RMS at 1kHz
- Rated Outputs
- 0.5V RMS 10 Hz to 60 kHz, into 100K ohm load (maximum balanced output capability is 0.46V RMS at less than 0.5% THD at 1kHz)
- Controls
- 6 Push Buttons: Power, Menu, Option, Enter, Input, Mute
- Power Supplies
- Electronically regulated low and high voltage supplies. Automatic 2 minute warm-up/brown-out mute. Line regulation better than .01%
- Noise
- 77 dB, shorted inputs
- Tube Complement
- (3)-6H30P dual triodes, plus (1 each) 6550WE and 6H30P in power supply
- Power Requirements
- 100-125VAC 60Hz (200-250VAC 50/60Hz) 120 watts maximum. Standby: 2 watts
- Dimensions
- Width: 19” (48 cm)Height: 6.5” (13.7 cm)Depth: 13.7” (34.8 cm)Handles extend 1.6” (4 cm) forward of the front panelWeight: 15.4 lbs. (7 kg) Net; 23.5 lbs. (10.7 kg) Shipping
Manufacturer's Description — Audio Research
PH9 provides class leading phono preamplification for the majority of cartridge and turntable combinations.
A trio of 6H30 vacuum tubes form the core of a simple and clear signal path. A classic Audio Research design, the PH9 revels in the vibrance and vitality with which tube gear excels, yet neutrally portrays the subtlest shadings in cartridge and tone-arm selections with transparency.
Five impedance settings
Five different impedance settings allow for cartridge loading, which can be changed on the fly with the included metal remote. Cartridge impedance, tube hours, auto shutdown, and other features are included in the menu system.
Since 1970, High Definition has been more than our trademark; it has been our guiding principle for all products. PH9 continues this passion and philosophy, offering the listener stunning playback, great value, and unparalleled long-term support.
