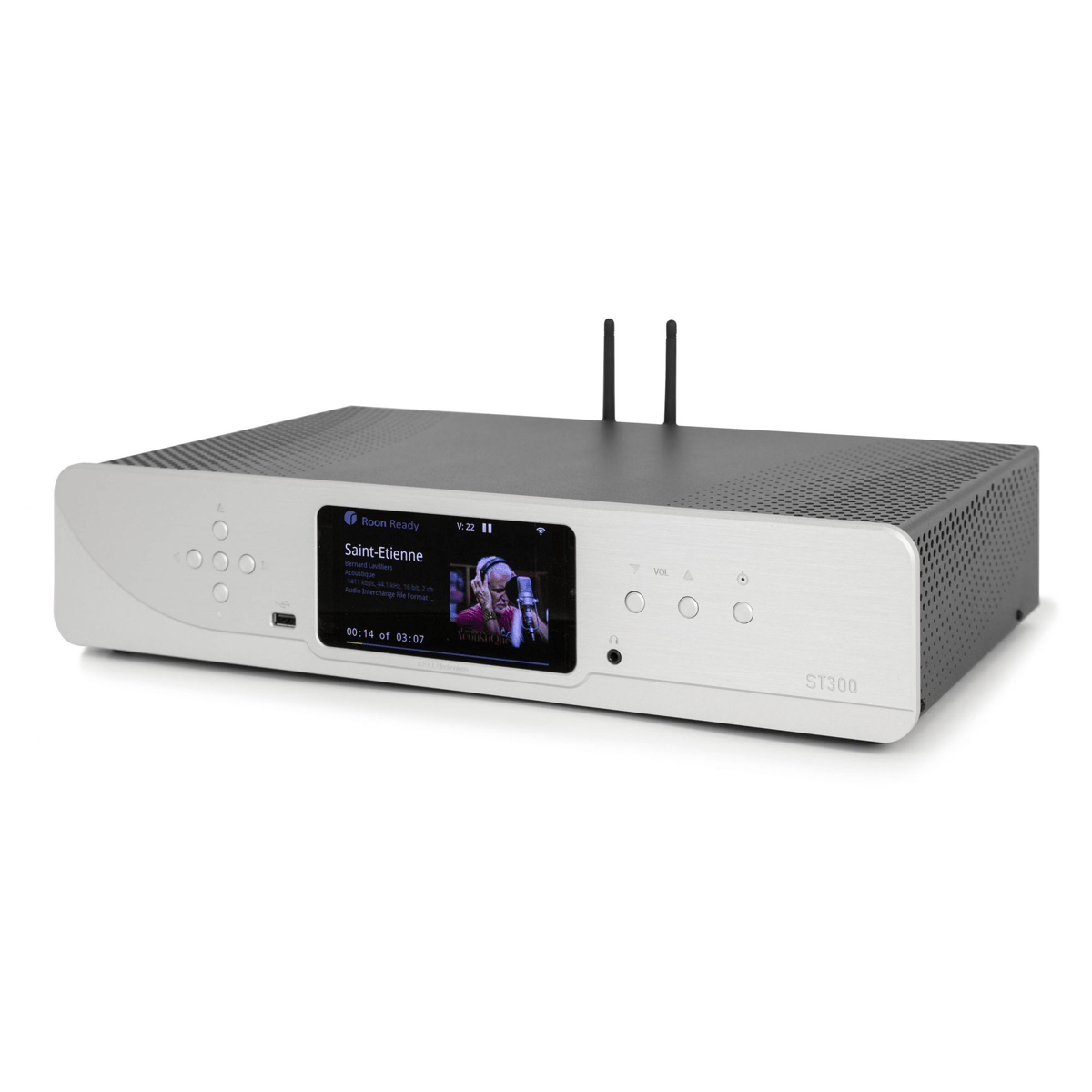

Atoll Electronique ST300 Signature

STREAMER / DAC

Whether it’s listening to music in high definition streaming, locally from your network, from a USB key, a hard drive, via Bluetooth®,
or your favourite internet radios, our ST300 Signature network player is adapted to the current needs related to the reading of dematerialized music files. It embeds a high-performance converter and can be used as a pure source or preamplifier.

• 8 mm brushed aluminium front.
• 1×30 VA linear transformer + 2×10 VA low-noise toroidal transformers (audio).
• Total of capacitors: 69 000 µF.
• ESA series CLARITY CAP audio MKP link capacitors.
• Double converter BURR-BROWN PCM1792A:
             – Dynamic: 132 dB.
             – Signal/Noise ratio: 132 dB.
• 5″ TFT LED colour graphic display (800*480).
• Discrete component audio stages without negative feedback in pure Class A.
• Analogue volume management (switched resistors) that can be bypassed.
• Specific power supply dedicated to the audio stages.

• Specific power supply dedicated to the analog-digital audio converter.
• Resolutions: PCM up to 24 bits/192 kHz and DSD64 and DSD128.
• Playback of audio files is supported on the network (DLNA and UPnP compatible) via wired RJ45 or WiFi connections.
• Display of names, tags, resolutions, and album covers.
• “Gapless” system (no cut between pieces).
• Ability to create playlists.
• USB-A file systems: FAT32, NTFS, EXT2/3/4.
• ATOLL “streamer” remote control supplied as standard.
• ATOLL Signature 2” App (Android and IOS).

The user can use simultaneously the XLR output and the RCA output of the ST300.

CONNECTIVITY

Audio inputs
2 Stereo line inputs
4 Digital inputs: 2 Coaxial, 2 Optical Toslink
1 Bluetooth®
2 USB-A inputs:1 front, 1 rear

Audio outputs
1 Stereo line RCA output
1 Stereo line XLR output
2 Digital outputs: 1 Coaxial, 1 Optical Toslink

Various
1 RJ45 input (network).
1 Trigger output (12V).
1 WIFI antenna.
1 Bluetooth® antenna.
