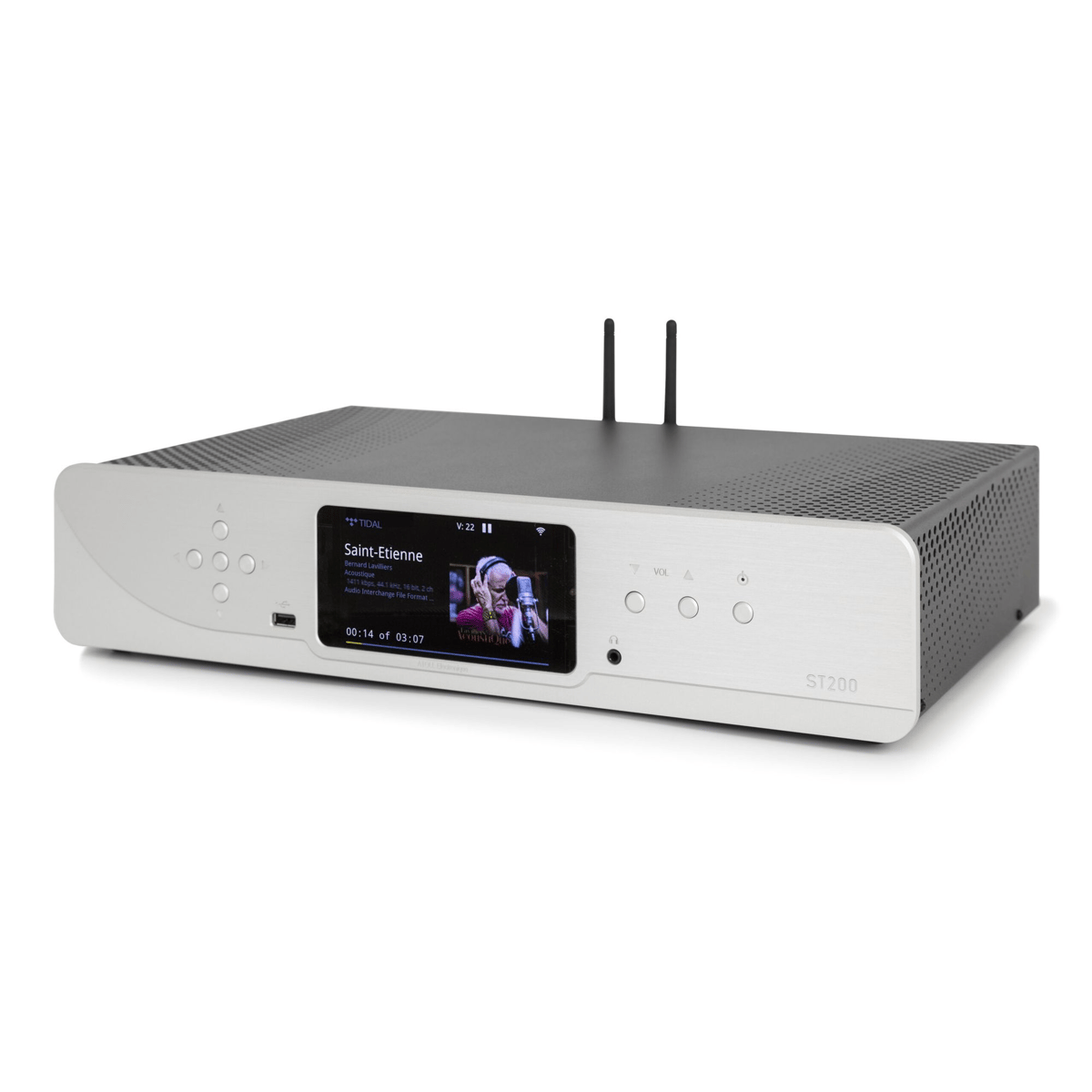

Atoll Electronique ST200 Signature

STREAMER / DAC

Whether it’s listening to high-definition streaming music, locally from your network, from a USB key, a hard drive, via Bluetooth®, or via your favourite internet radios, our network playerST200 Signature is totally adapted to the current needs related to the reading of dematerialized music files. It embeds a high-performance converter and can be used as a pure source or as a preamplifier.

• 8 mm brushed aluminium front.
• 1×30 VA linear transformer + 1×10 VA low-noise linear transformer (audio).
• Total of capacitors: 27 000 µF.
• ESA series CLARITY CAP audio MKP link capacitors.
• BURR-BROWN PCM1792A converter:
               – Dynamic: 129 dB.
               – Signal/Noise ratio: 129 dB.
• 5″ TFT LED colour graphic display (800*480).
• Discrete component audio stages without negative feedback in pure Class A.
• Analogue volume management (switched resistors) that can be bypassed.
• Specific power supply dedicated to the audio stages.

• Specific power supply dedicated to the analogue digital audio converter.
• Accepted resolutions: PCM up to 24 bits/192 kHz and DSD64 and DSD128.
• Playback of audio files present on the network (DLNA and UPnP compatible) in wired.
• RJ45 or Wifi connection.
• Display of names, tags, resolutions and album covers.
• “Gapless” system (no cut between pieces).
• Ability to create playlists.
• USB-A file systems: FAT32, NTFS, EXT2/3/4.
• ATOLL “streamer” remote control supplied as standard.
• ATOLL Signature 2” App (Android and IOS).

CONNECTIVITY

Audio inputs
2 Stereo line inputs.
4 Digital inputs: 2 Coaxial, 2 Optical Toslink.
1 Bluetooth®.
2 USB-A inputs (1 front, 1 rear).

Audio outputs
1 Stereo line output.
2 Digital outputs: 1 Coaxial, 1 Optical Toslink.

Various
1 RJ45 input (network).
1 Trigger output (12V).
1 WIFI antenna (802.11b/g/n).
1 Bluetooth® antenna.
