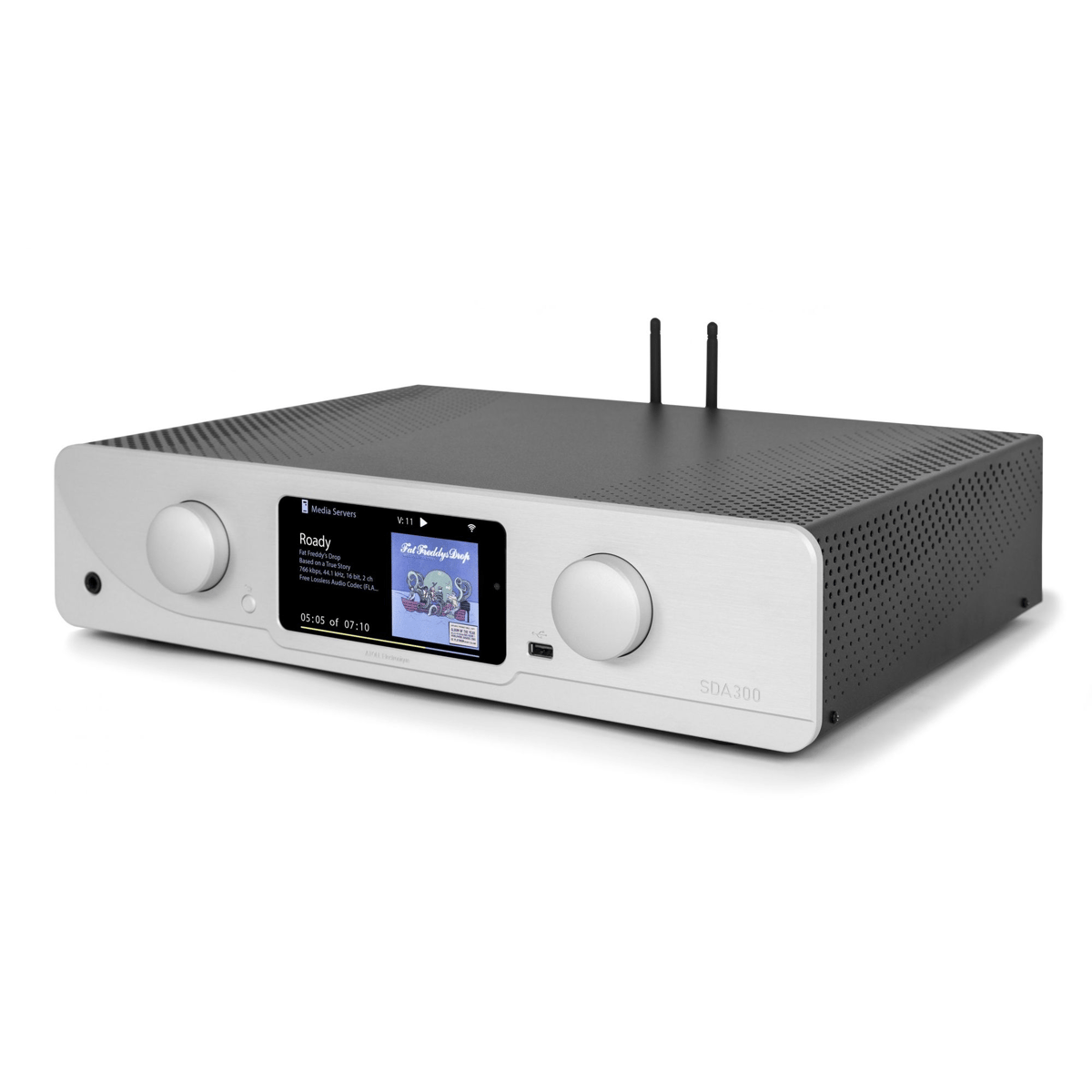

STREAMER / DAC / INTEGRATED AMPLIFIER​

The SDA300 Signature is designed to reproduce the integrity and complexity of musical textures with great fluidity. It offers free access to online radio stations and lets you play live, in high definition, on the main streaming platforms. It is open to your entire network and has very complete connectivity. It converts the digital signal to reproduce your audio files with striking realism. As an all-in-one concept, it goes even further by functioning as a complete music player and integrated amplifier, using the amplifier section of the IN300.

• 8 mm brushed aluminium front panel.
• 2 toroidal transformers of 440 VA each (audio) + 2×4.5 VA + 3.2 VA.
• Total of capacitors: 65 800 µF.
• 2×150 Wrms / 8Ω.
• MOS-FET double push-pull power stage.
• High-quality, MKP technology link capacitors, shielded in a metal box.
• Filter capacitors: 8×6800 μF, high-quality, low ESR, designed
  explicitly for ATOLL.
• BURR BROWN PCM1792A converter:
           – Dynamic: 129 dB.
           – Signal/Noise ratio: 129 dB.
• 5″ TFT LED colour graphic display (800*480).
• Discrete component audio stages without negative feedback in pure Class A.

• Analog volume management (switched resistors) that can be bypassed.
• Specific power supply dedicated to the audio stages.
• Specific power supply dedicated to the analogue digital audio converter.
• Accepted resolutions: PCM up to 24 bits/192 kHz and DSD64 and DSD128.
• Playback of audio files present on the network (DLNA and UPnP compatible) in a wired RJ45 or Wi-Fi connection.
• Display of names, tags, resolutions and album covers.
• “Gapless” system (no cut between pieces).
• Possibility to create playlists.
• USB-A file systems: FAT32, NTFS, EXT2/3/4.
• ATOLL “streamer” remote control supplied as standard.
• ATOLL Signature 2” App (Android and IOS).

CONNECTIVITY

Inputs
2 Analog Inputs – 2 coaxial S/PDIF (24 bits/192 kHz PCM).
2 Toslink optical S/PDIF inputs (24 bits/192 kHz PCM).
2 USB-A inputs (1 front and 1 rear).

1 RJ45 network socket.
1 Bluetooth® receiver (antenna).

Outputs
Speakers.
1 Pre-out output.
1 Coaxial S/PDIF output.
1 S/PDIF optical Toslink.

1 Trigger output (12V).
1 Headphone output on the front panel (Ø 6,35 mm – 1/4″).
1 Wi-Fi antenna (802.11b/g/n).

The SDA300 Signature offers excellent control with Apple or Android apps, or the included remote control.
The stylish 5″ TFT colour display gives the user the correct information about the device’s functions and shows cover art
and song details.
