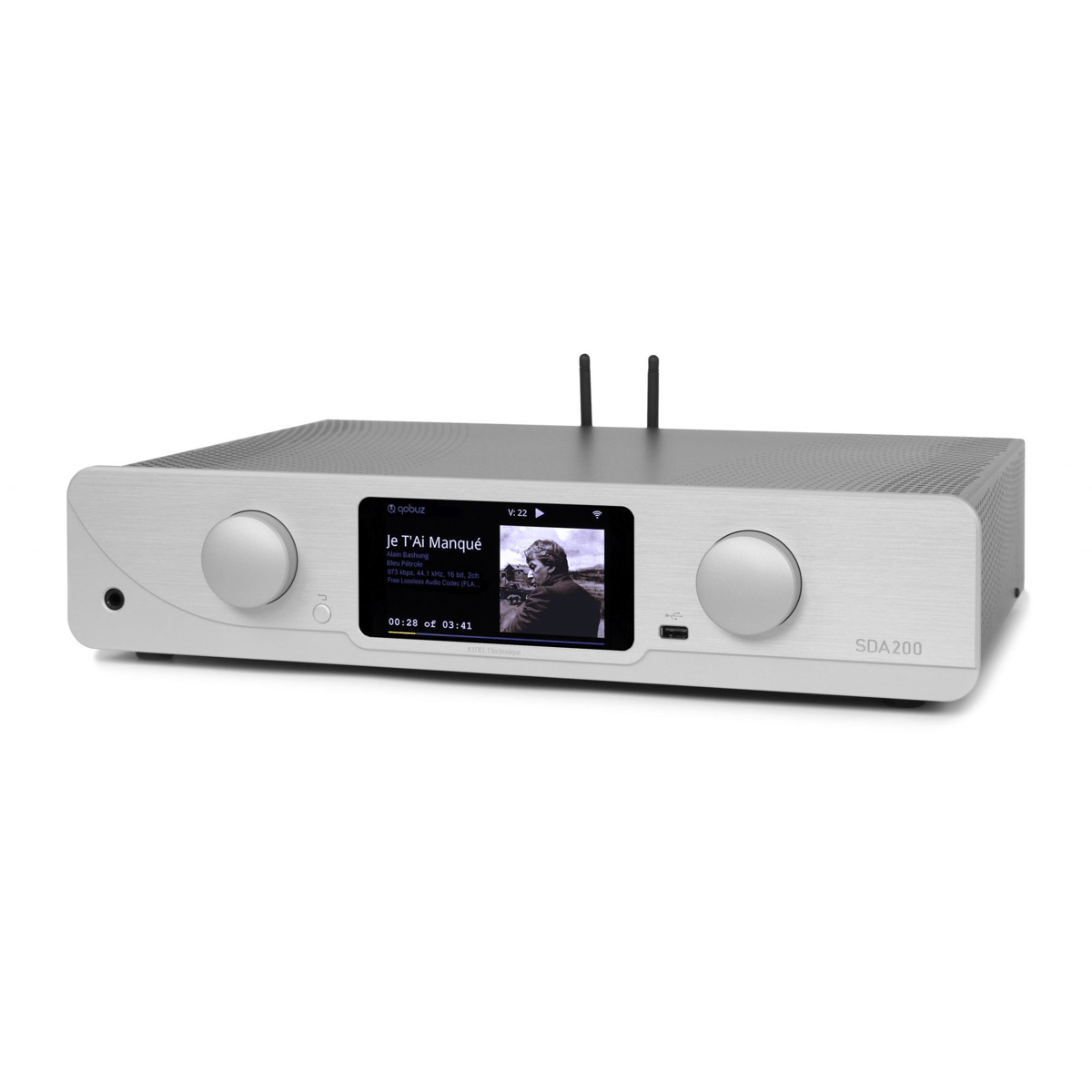

STREAMER / DAC / INTEGRATED AMPLIFIER.

Our “All-in-one-un” SDA200 Signature is fully adapted to current needs related to the playback of dematerialised music files. Whether you’re listening to music in high-definition streaming, locally from your network, from a USB key, from a hard drive, via Bluetooth®, or your favourite internet radios, it has complete connectivity. Finally, the SDA200 Signature integrates a high-performance converter and the amplifier part of the IN200 Signature.

• 8 mm brushed aluminium front.
• Two 340 VA toroidal transformers (audio) + 2×4.5 VA.
• Total of capacitors: 65 800 µF.
• 2×120Wrms / 8Ω.
• MOS-FET dual push-pull power stage.
• High-quality, shielded MKP technology link capacitors.
• Filtering capacitors: 8 × 6800 μF high-quality, low ESR, designed explicitly for ATOLL.
• BURR-BROWN PCM1792A converter:
             – Dynamic: 129 dB.
             – Signal/Noise ratio: 129 dB.
• 5″ TFT LED colour graphic display (800*480).
• Discrete component audio stages without negative feedback in pure Class A.
• Analogue volume management (switched resistors) that can be bypassed.

• A specific power supply is dedicated to the audio stages.
• A particular power supply is dedicated to the analogue digital audio converter.
• Accepted resolutions: PCM up to 24 bits/192 kHz and DSD64 and DSD128.
• Playback of audio files present on the network (DLNA and UPnP compatible) in a wired RJ45 or WiFi connection.
• Display of names, tags, resolutions and album covers.
• “Gapless” system (no cut between pieces).
• Ability to create playlists.
• USB-A file systems: FAT32, NTFS, EXT2/3/4.
• ATOLL “streamer” remote control supplied as standard.
• ATOLL Signature 2 App (Android and IOS).

CONNECTIVITY

Inputs
2 Analog inputs – 2 coaxial S/PDIF (PCM1792 24 bits/192 kHz).
2 Toslink optical S/PDIF inputs (24 bits/192 kHz PCM).
2 USB-A inputs (1 front and 1 rear).

1 RJ45 network socket.
1 Bluetooth® receiver (antenna).

Outputs
Speakers.
1 Pre-out output.
1 Coaxial S/PDIF output.
1 Toslink optical S/PDIF output.

1 Trigger output 12V.
1 Headphone output on the front panel (Ø 6,35 mm – 1/4″).
1 Wi-Fi antenna (802.11b/g/n).
