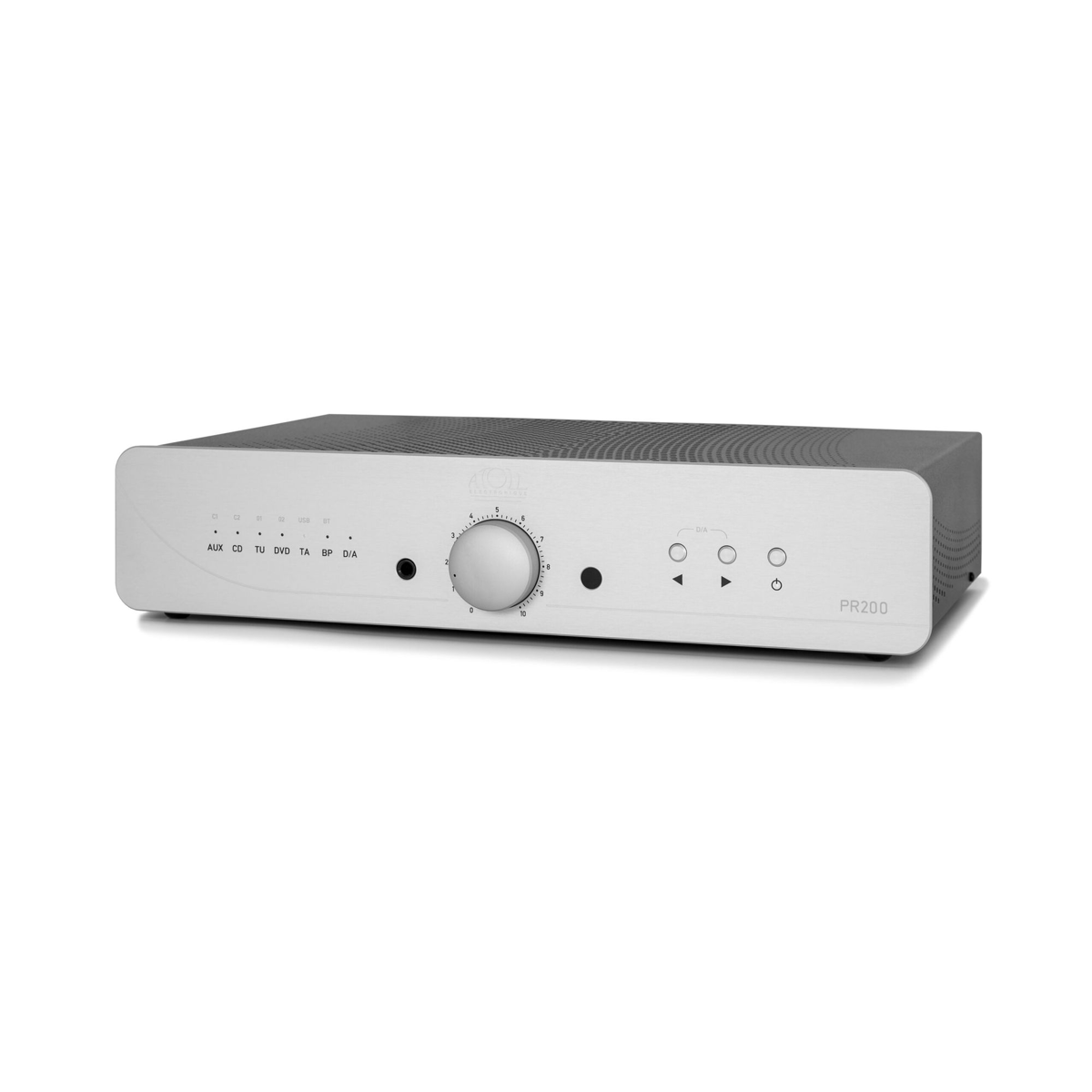

The PR200 Signature is part of ATOLL’s range of preamplifiers and power amplifiers. This preamplifier represents the modularity and power ATOLL wants to promote: a wide range of combinations and a considerable source of improvements.

• 4 mm brushed aluminium front.
• 340 VA toroidal transformer.
• ALPS motorized potentiometer.
• Total of capacitors: 31 918 µF.
• Monitoring loop.
• Balanced discrete component audio stages.
• MKP Technology Link Capacitors.

• Double-sided circuit boards with nickel/gold finish.
• BY-PASS input.
• 2 analogue preamp outputs.
• 12V Trigger output.
• ATOLL global remote control.
• The PR200 Signature can receive the following optional boards:
             – DAC boards: DA100 and DA200.
             – PHONO boards: P50 and P100 (can be combined with DAC boards).

CONNECTIVITY

Inputs
5 Audio inputs (RCA): AUX (or optional P50 / P100 phono stage), CD, TUNER, DVD, TAPE (IN + OUT).
1 BY-PASS input.

Outputs
2 Line preamp outputs (for bi-amplification or to connect a subwoofer).
1 Trigger output (12V).
1 Ø 6,35 mm headphone jack output.

Various
Possibility of adding DA100 or DA200 digital boards (optional).
