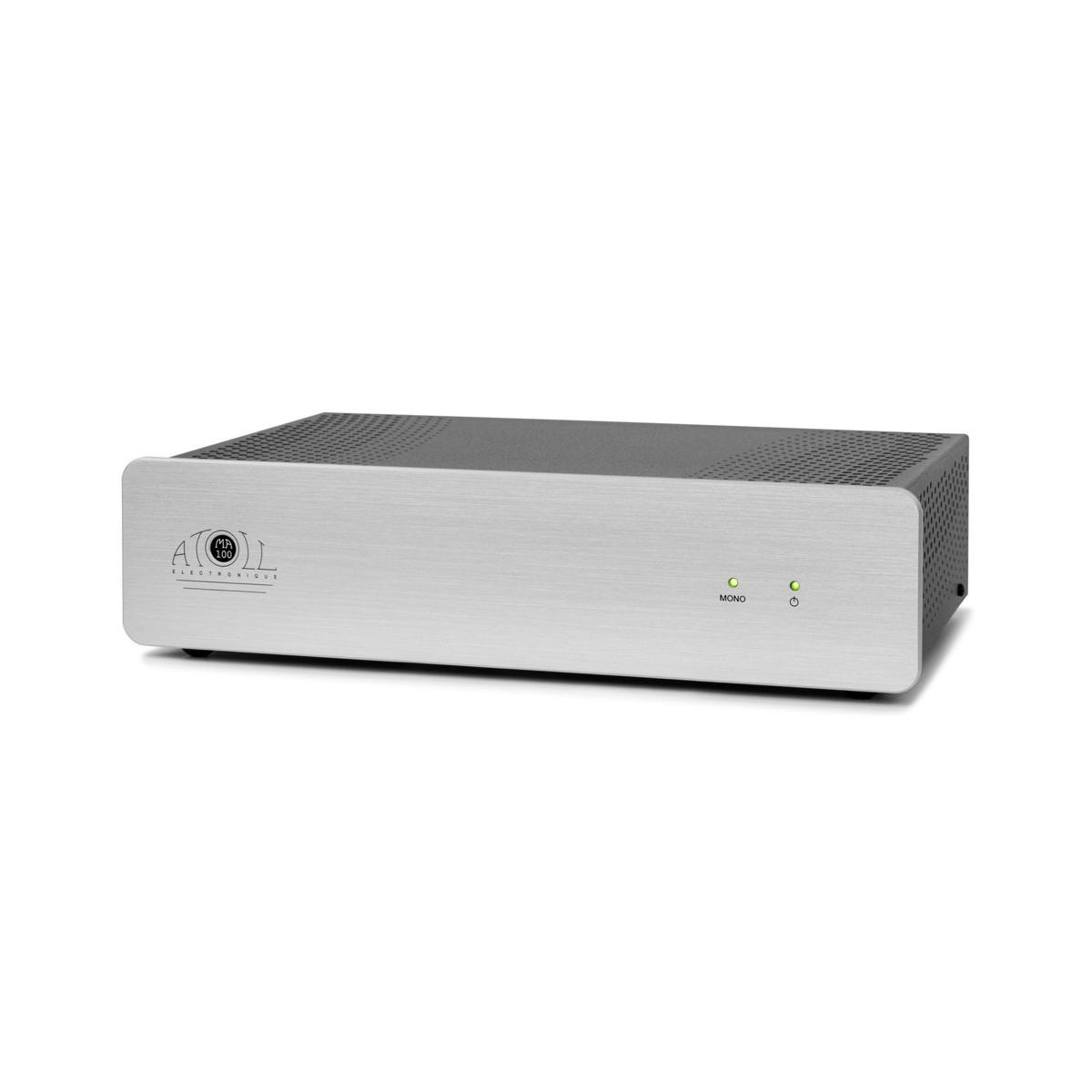

Atoll Electronique MA100

The MA100 mini power amplifier is suitable for most HIFI or audio-video applications. Very scalable, it can be used alone or in bi-amplification. It can be associated with an integrated amplifier or an ATOLL preamplifier. It is bridgeable in a monoblock via an internal switch. It is fitted as standard with a 12V Trigger input (direct ignition in conjunction with a preamplifier).

• 4 mm brushed aluminium front.
• 2×60 Wrms / 8Ω.
• 170 VA toroidal transformer.
• Filtering capacitors: 2×6800 μF.
• Monoblock bridgeable.
• 12V Trigger input.

• Balanced discrete component audio stages.
• MOS-FET power transistor.
• Polarization of output stages in class A/B.
• Double-sided circuit boards with nickel/gold finish.
• Monoblock bridgeable.

CONNECTIVITY

1 x RCA input.
1 x RCA output.
1 x 12V Trigger input.
Screw terminals, gold-plated contacts.
External Stereo/Mono switch.
