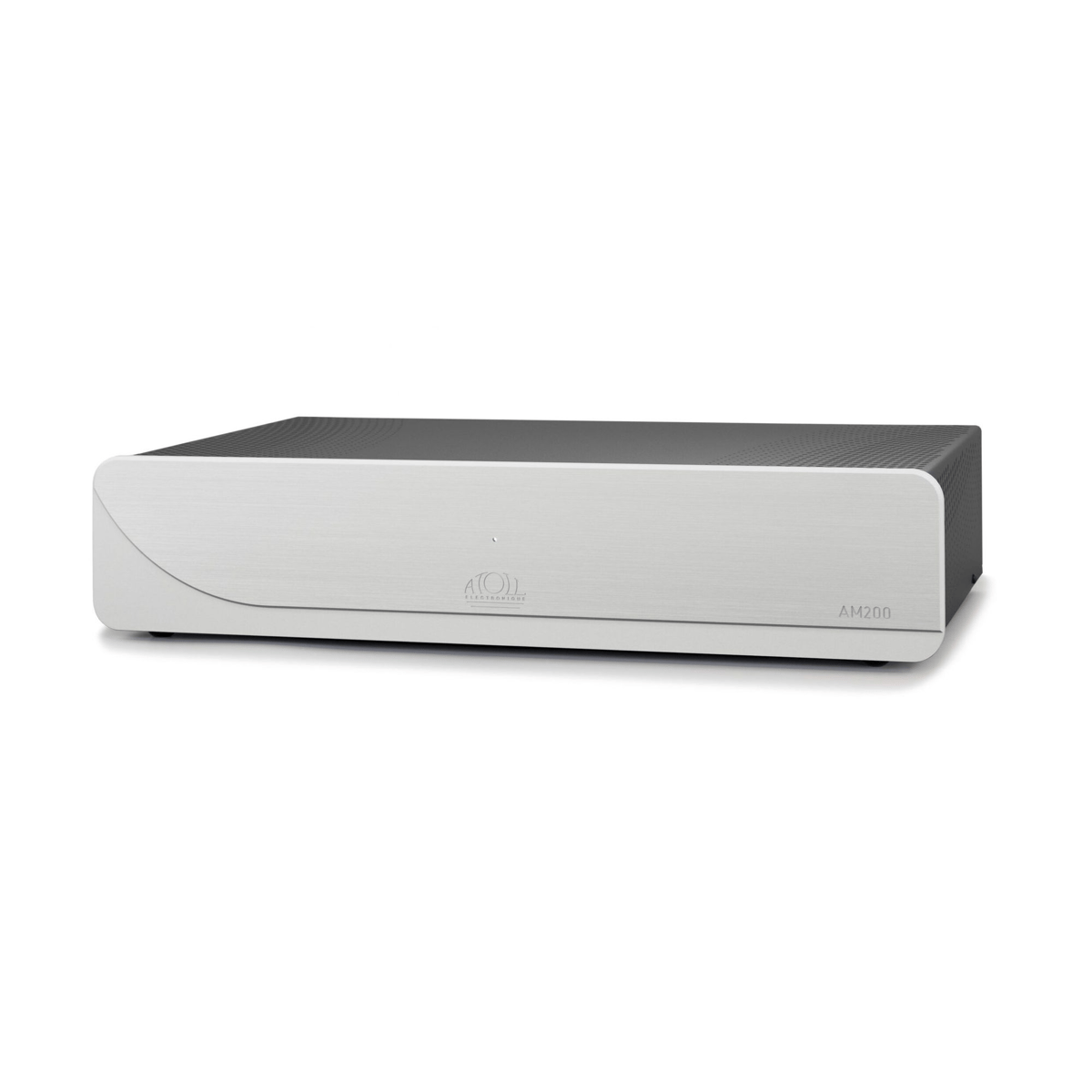

Atoll Electronique AM200 Evolution
The AM200 Evolution block is suitable for most HIFI or audio-video applications. Very scalable, it can be used alone or in bi-amplification. It can be associated with an integrated amplifier or an ATOLL preamplifier. It is bridgeable in a monoblock via an internal switch. It is equipped as standard with a 12V Trigger input (direct ignition in conjunction with a preamp).
- 8 mm brushed, micro-blasted and anodized aluminum front panel, high-precision engraving.
- 1.5 mm steel chassis.
- Two 340 VA toroidal transformers each.
- High-quality and shielded MKP link capacitors.
- Bipolar transistor and LED current sources to ensure perfect voltage stability.
- Discrete balanced audio stages.
- MOS-FET power transistor.
- Class A/B output stage biasing.
- Custom PCB with nickel/gold finish.
- Mono block bridgeable.
- New tellurium copper speaker outputs.
- 12V Trigger input.
CONNECTIVITY
1 RCA stereo analogue input.
1 RCA stereo analogue output.
12V Trigger input.
Loudspeaker outputs on gold-plated screw terminal blocks.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
No reviews found yet
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Power Wrms/channel/8Ω
- 120 W
- Power Wrms/channel/4Ω
- 200 W
- Pulse power/channel
- 300 W
- Power supply
- 2×340 VA
- Total capacitive
- 59,420 µF
- Number of inputs
- 1 RCA
- Consumption with switch off
- 0 W
- Consumption in operation
- 20 W – 600 W
- Input impedance
- 220 kΩ
- Sensitivity
- 1.77 V
- Signal/noise ratio
- 100 dB
- Distortion at 1 kHz
- 0.05%
- Bandwidth
- 5 Hz – 200 kHz
- Rise time
- 1.5 µs
- Dimensions
- 440×295×95 mm
- Weight
- 12 kg
Manufacturer's Description — Atoll Electronique
The AM200 Evolution block is suitable for most HIFI or audio-video applications. Very scalable, it can be used alone or in bi-amplification. It can be associated with an integrated amplifier or an ATOLL preamplifier. It is bridgeable in a monoblock via an internal switch. It is equipped as standard with a 12V Trigger input (direct ignition in conjunction with a preamp).
- 8 mm brushed, micro-blasted and anodized aluminum front panel, high-precision engraving.
- 1.5 mm steel chassis.
- Two 340 VA toroidal transformers each.
- High-quality and shielded MKP link capacitors.
- Bipolar transistor and LED current sources to ensure perfect voltage stability.
- Discrete balanced audio stages.
- MOS-FET power transistor.
- Class A/B output stage biasing.
- Custom PCB with nickel/gold finish.
- Mono block bridgeable.
- New tellurium copper speaker outputs.
- 12V Trigger input.
CONNECTIVITY
1 RCA stereo analogue input.
1 RCA stereo analogue output.
12V Trigger input.
Loudspeaker outputs on gold-plated screw terminal blocks.
