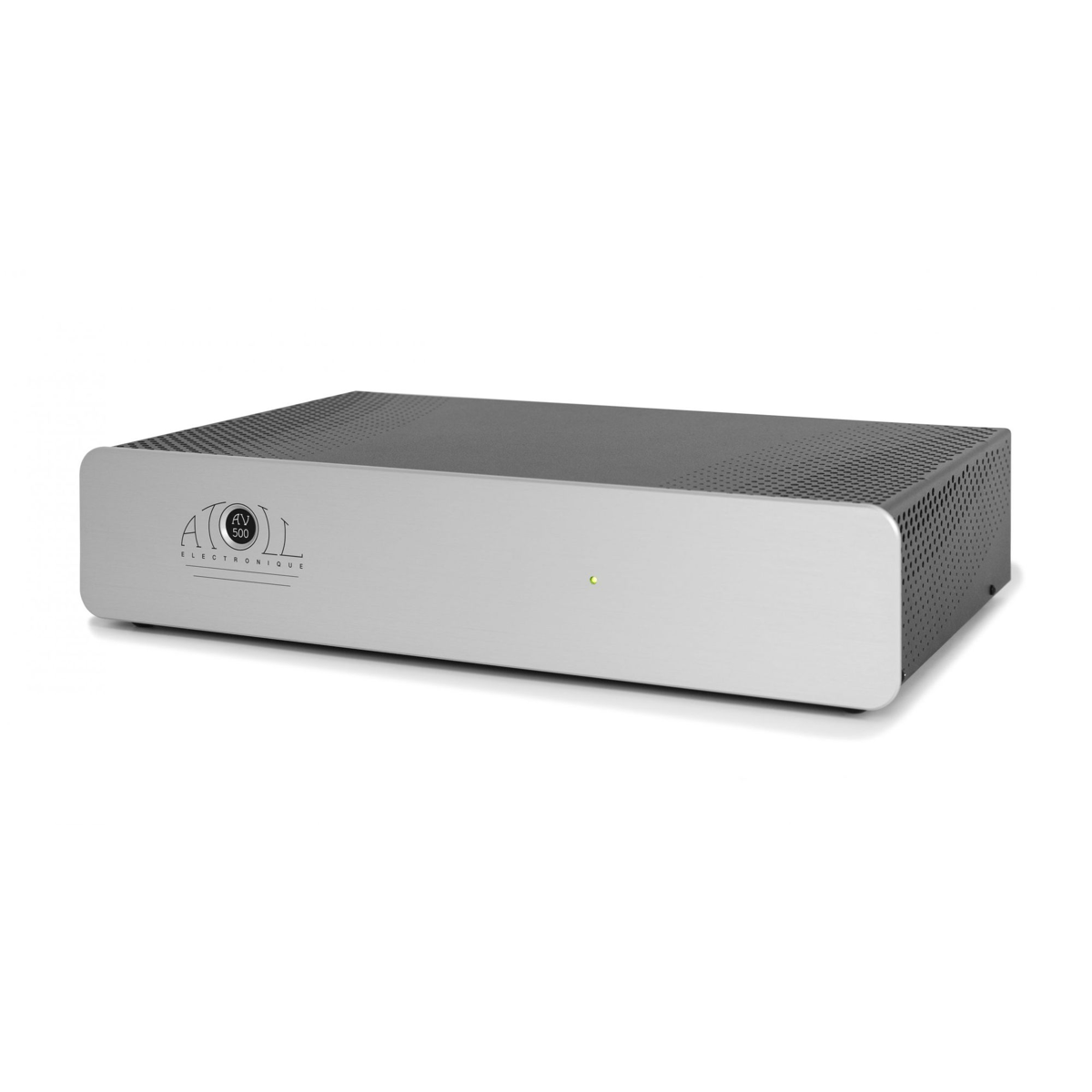

Atoll Electronique AV500
The AV500 home cinema power amp is a 5-channel model developing up to 85 watts per channel into 8 ohms. Equipped with high-quality electronic components, this amplifier will be advantageously associated with an integrated home cinema amplifier with pre-out outputs to amplify the front and surround channels. This musical amp, combining power and finesse, allows the listener to dive into the heart of the action.
- 4 mm brushed aluminium front.
- 1,5 mm steel frame.
- 2×100 Wrms under 8Ω, 5×85 Wrms under 8Ω.
- 2 toroidal transformers of 340 VA each.
- Total Capacitive: 73 000 µF.
- Symmetrical stages with discrete components.
- MOS-FET technology output transistors.
- Optional natural aluminium finish.
- Possibility of integrating a 12V Trigger input as an option.
CONNECTIVITY
5 RCA inputs.
5 RCA outputs (bi-amplification).
5 Loudspeaker outputs strong section to screw accepting banana plugs.
Same gain as AM and AV series.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Power in Wrms/8Ω (230 V)
- 5×85 W / 2×100 W
- Power in Wrms/4Ω (230 V)
- 5×100 W / 2×140 W
- Power supply
- 2×340VA
- Total of capacitors
- 73,000 µF
- Number of entries
- 2×5
- Input impedance
- 47 kΩ
- Sensitivity
- 1,58 V to 1,77 V
- Signal/Noise ratio
- 100 dB
- Distortion at 1 kHz
- 0,005%
- Bandwidth
- 5 Hz – 200 kHz
- Rising time
- 1,3 µs
- Dimensions
- 440×291×95 mm
- Weight
- 12 Kg
Manufacturer's Description — Atoll Electronique
The AV500 home cinema power amp is a 5-channel model developing up to 85 watts per channel into 8 ohms. Equipped with high-quality electronic components, this amplifier will be advantageously associated with an integrated home cinema amplifier with pre-out outputs to amplify the front and surround channels. This musical amp, combining power and finesse, allows the listener to dive into the heart of the action.
- 4 mm brushed aluminium front.
- 1,5 mm steel frame.
- 2×100 Wrms under 8Ω, 5×85 Wrms under 8Ω.
- 2 toroidal transformers of 340 VA each.
- Total Capacitive: 73 000 µF.
- Symmetrical stages with discrete components.
- MOS-FET technology output transistors.
- Optional natural aluminium finish.
- Possibility of integrating a 12V Trigger input as an option.
CONNECTIVITY
5 RCA inputs.
5 RCA outputs (bi-amplification).
5 Loudspeaker outputs strong section to screw accepting banana plugs.
Same gain as AM and AV series.
