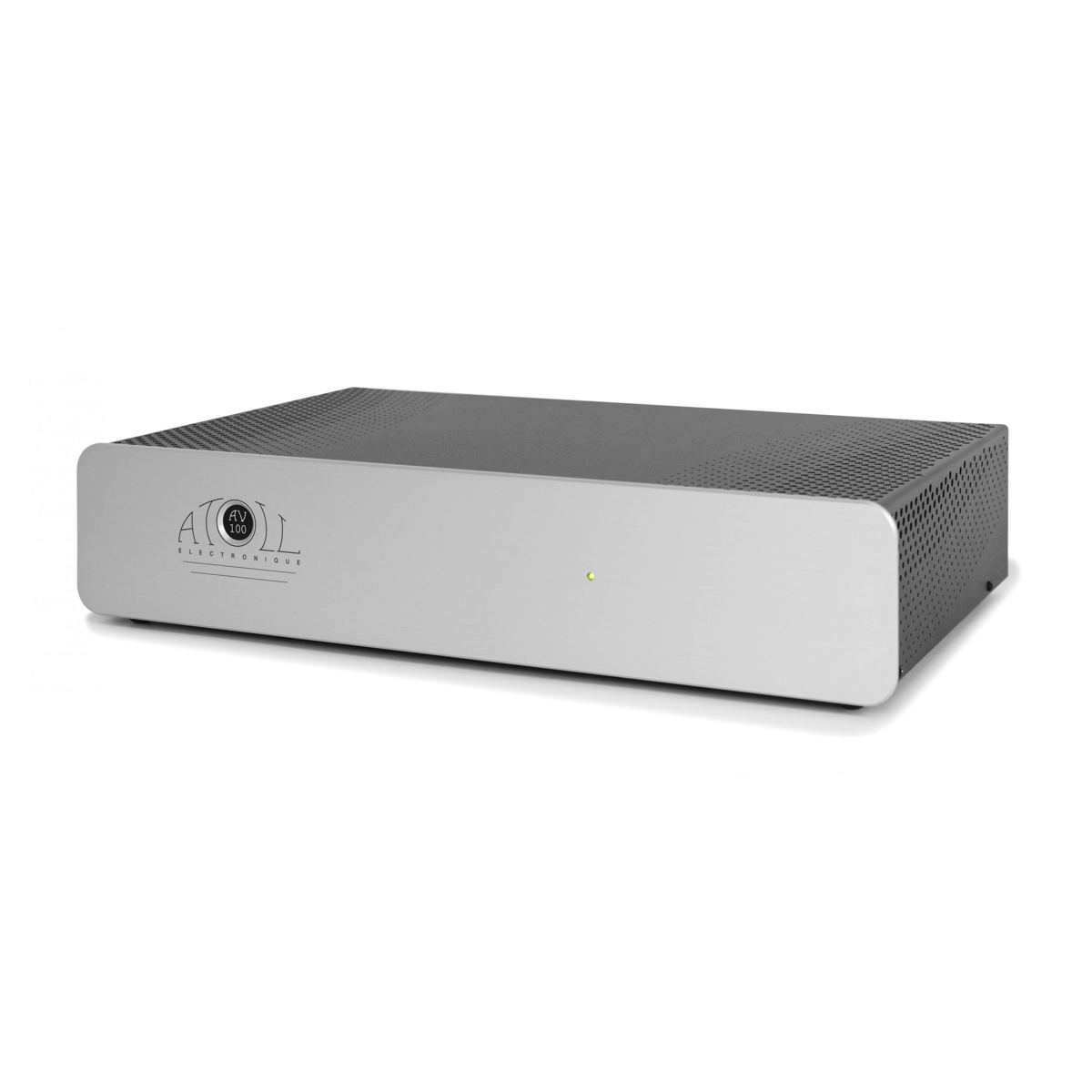

Atoll Electronique AV100

The AV100 home cinema power amp is a 3-channel model developing up to 100 watts per channel into 8 ohms. Equipped with high-quality electronic components, this amplifier will be advantageously associated with an integrated home cinema amplifier with pre-out outputs to amplify the front channels. This musical amp, combining power and finesse, allows the listener to dive into the heart of the action.

• 4 mm brushed aluminium front.
• 1,5 mm steel frame.
• 3×100 Wrms under 8Ω.
• 2 toroidal transformers of 340 VA each.

• Total of capacitors: 44 210 µF.
• Symmetrical stages with discrete components.
• MOS-FET technology output transistors.

• Optional natural aluminium finish.
• Possibility of integrating a 12V Trigger input as an option.

CONNECTIVITY

Inputs
3 Signal inputs (right, centre and left channels).
1 Trigger input (1) (optional).

Outputs
3 Signal outputs (right, centre and left channels).
1 Right speaker output.
1 Central channel output.
1 Left speaker output.
