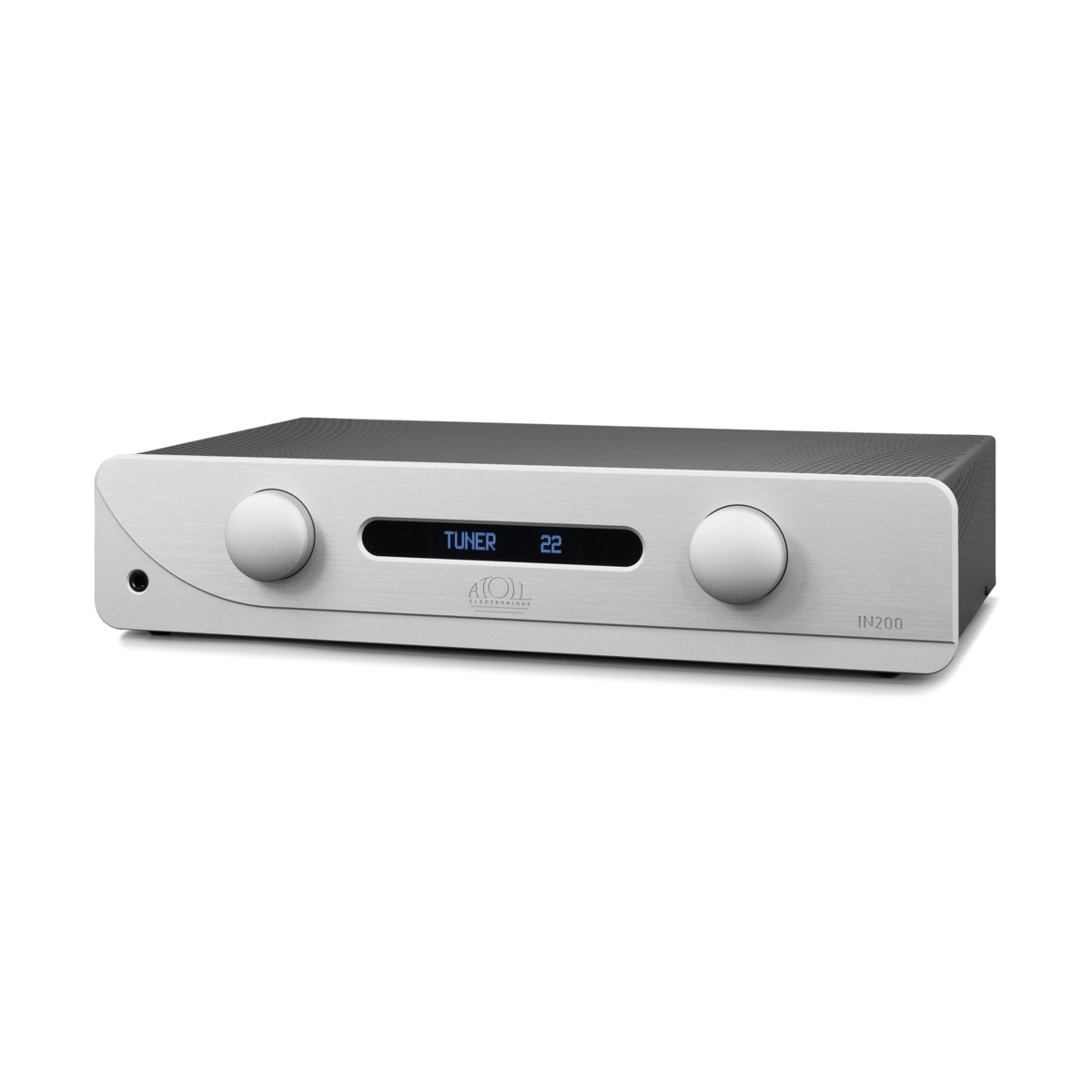

Atoll Electronique IN200 Evolution
The integrated amp-preamp IN200 Evolution is manufactured with the greatest care: We choose the best possible components to achieve the highest level of sound performance. This rigorous search for perfection involves designing proprietary ATOLL circuits to preserve the integrity of the most subtle musical signals.
- 8 mm brushed, micro-blasted and anodized aluminum front panel, high-precision engraving.
- 1.5 mm steel chassis.
- 2×120 Wrms / 8Ω power.
- Two 340 VA toroidal transformers for the audio stages, plus 10 VA for the digital stages.
- High-quality and shielded MKP coupling capacitors.
- Bipolar transistor and LED current sources to ensure perfect voltage stability.
- New tellurium copper speaker outputs.
- Dual push-pull MOS-FET power stage.
- Class A/B output stage biasing.
- Possibility of choosing standby mode: Low consumption or preheating.
- Two volume attenuators: 1 per channel to maintain the dual mono architecture.
- Possibility to manage balance and memorize it.
- Possibility to rename the inputs.
- High contrast OLED display (on or off mode after 5 seconds of inactivity).
- Double-sided printed circuits with nickel/gold finish.
- ATOLL global remote control supplied as standard.
- The IN200 EVO can receive the following optional boards:
– DAC boards: DA100 and DA200.
– PHONO boards: P50 and P100 (can be combined with DAC boards).
- Custom-made tellurium copper speaker output connectors
specially manufactured for ATOLL. - Internal speaker output wiring with high-quality cable.
- Gold-plated RCA output connectors.
CONNECTIVITY
Inputs
5 Audio Inputs (RCA): AUX (or optional P50/P100 PHONO stage), CD, TUNER, DVD, TAPE (IN + OUT).
1 BY-PASS Input (used as a power amplifier).
Outputs
2 Line Preamp Outputs (for bi-amplification or to connect a subwoofer).
1 Trigger Output (12V).
1 Ø 6.35 mm headphone jack output.
Various
Possibility of adding DA100 or DA200 digital boards (optional).
Our balanced MOS-FET amplifier circuits offer excellent harmonic gradients and have no memory effect, every moment, the current is immediately delivered to your speakers. This is one of the secrets of the musicality that ATOLL amplifiers enjoy.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
Forum Mentions
No forum mentions found yet
Specifications
- Power in Wrms/channel/8Ω (230v)
- 120 W
- Power in Wrms/channel/4Ω (230v)
- 200 W
- Power supply
- 2×340 VA + 10 VA
- Total capacitive
- 59 220 µF
- Number of inputs
- 5+1 BY-PASS
- Power consumption with switch off
- 0 W
- Power consumption in standby (low consumption)
- <0.5 W
- Power consumption in preheating mode
- 18 W
- Power consumption in operation
- 19 W – 600 W
- Input impedance
- 220 kΩ
- Maximum input level
- 3.5 Vrms
- Sensitivity
- 350 mV
- Signal/noise ratio
- 100 dB
- Distortion at 1 kHz
- 0.05% / (10 W)
- Bandwidth
- 5 Hz – 100 kHz
- Rise time
- 2.5 µs
- Dimensions
- 440×309×95 mm
- Weight
- 12 Kg
Manufacturer's Description — Atoll Electronique
The integrated amp-preamp IN200 Evolution is manufactured with the greatest care: We choose the best possible components to achieve the highest level of sound performance. This rigorous search for perfection involves designing proprietary ATOLL circuits to preserve the integrity of the most subtle musical signals.
- 8 mm brushed, micro-blasted and anodized aluminum front panel, high-precision engraving.
- 1.5 mm steel chassis.
- 2×120 Wrms / 8Ω power.
- Two 340 VA toroidal transformers for the audio stages, plus 10 VA for the digital stages.
- High-quality and shielded MKP coupling capacitors.
- Bipolar transistor and LED current sources to ensure perfect voltage stability.
- New tellurium copper speaker outputs.
- Dual push-pull MOS-FET power stage.
- Class A/B output stage biasing.
- Possibility of choosing standby mode: Low consumption or preheating.
- Two volume attenuators: 1 per channel to maintain the dual mono architecture.
- Possibility to manage balance and memorize it.
- Possibility to rename the inputs.
- High contrast OLED display (on or off mode after 5 seconds of inactivity).
- Double-sided printed circuits with nickel/gold finish.
- ATOLL global remote control supplied as standard.
- The IN200 EVO can receive the following optional boards:
– DAC boards: DA100 and DA200.
– PHONO boards: P50 and P100 (can be combined with DAC boards).
- Custom-made tellurium copper speaker output connectors
specially manufactured for ATOLL. - Internal speaker output wiring with high-quality cable.
- Gold-plated RCA output connectors.
CONNECTIVITY
Inputs
5 Audio Inputs (RCA): AUX (or optional P50/P100 PHONO stage), CD, TUNER, DVD, TAPE (IN + OUT).
1 BY-PASS Input (used as a power amplifier).
Outputs
2 Line Preamp Outputs (for bi-amplification or to connect a subwoofer).
1 Trigger Output (12V).
1 Ø 6.35 mm headphone jack output.
Various
Possibility of adding DA100 or DA200 digital boards (optional).
Our balanced MOS-FET amplifier circuits offer excellent harmonic gradients and have no memory effect, every moment, the current is immediately delivered to your speakers. This is one of the secrets of the musicality that ATOLL amplifiers enjoy.
