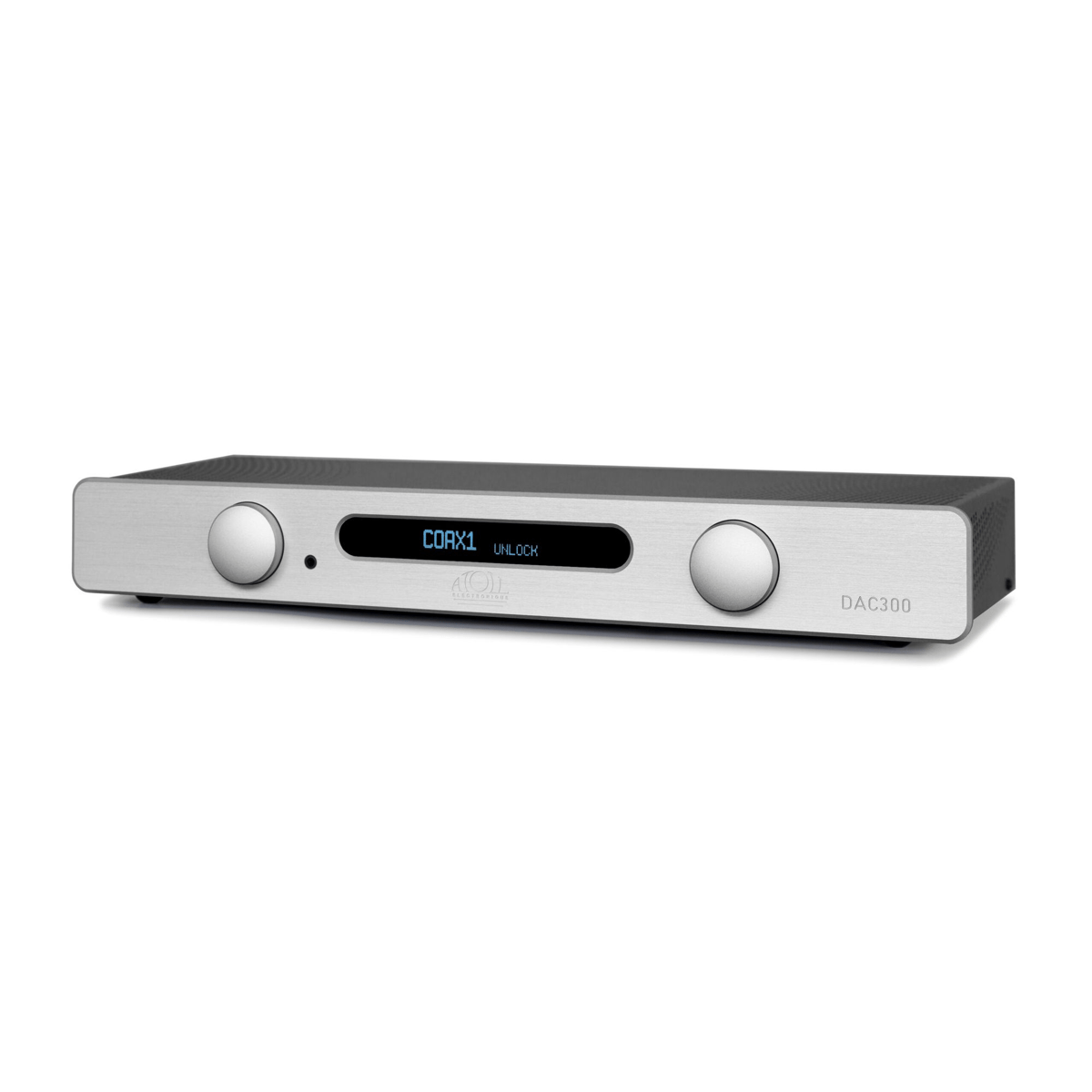

Atoll Electronique DAC300

The converter DAC300 has been implemented to offer you the best of your favourite music. The combination of the SABRE ES9038PRO converter, renowned for its musicality, and the feedback-free audio stages designed specifically by our design office, make this device the flagship of the converter range. The secret: the analogue signal processing stages, the power supplies (transformers, filtering, regulation), the digital signal processing before conversion, and the quality of the key components: clocks, transistors, capacitors, etc.

• 8 mm brushed aluminium front.
• 3 independent very low noise linear transformers (including 2 reserved for the audio line).
• SABRE ES9038PRO converter (32 bits/768 kHz):
           – Dynamic: 137 dB.
           – THD at 1 kHz (0 dBF): -122 dB.
           – Signal/Noise ratio: 132 dB.
• SABRE ES9311EQ power supply with very low noise (<1 μVrms).
• Separate digital and stage line power supplies.
• Ultra-high precision low jitter clock.
• Asynchronous USB-B input can convert PCM up to 768 kHz and DSD64, 128, 256 and 512 (XMOS USB interface with a specific program designed for ATOLL).

• Volume management by disengageable converter
  (BY-PASS ON or OFF).
• Unbalanced and balanced output lines.
• 12 independent voltage regulations.
• Symmetrical power supply of the audio output stages (low noise transformers).
• ESA series CLARITY CAP audio MKP link capacitors.
• High-frequency capacitors with silver mica technology.
• Output stages with discrete components, without feedback, polarized in class A.
• Specific transformer for digital stages.
• Standard ATOLL global remote control.

Type of files read:

S/PDIF inputs can support PCM up to 192 kHz.
USB-B can convert PCM up to 768 kHz and DSD64, 128, 256 and 512.
(This performance may vary depending on the software or operating systems of the USB source).

CONNECTIVITY

9 Digital Inputs
3 Coaxial.
3 Toslink optics.
1 AES/EBU.
1 Bluetooth®.
1 USB-B.

2 Digital Outputs
1 Coaxial and 1 optical.

3 Digital Outputs
1 Stereo unbalanced RCA.
1 Balanced stereo XLR.
1 Headphone jack Ø 3.5 mm.
