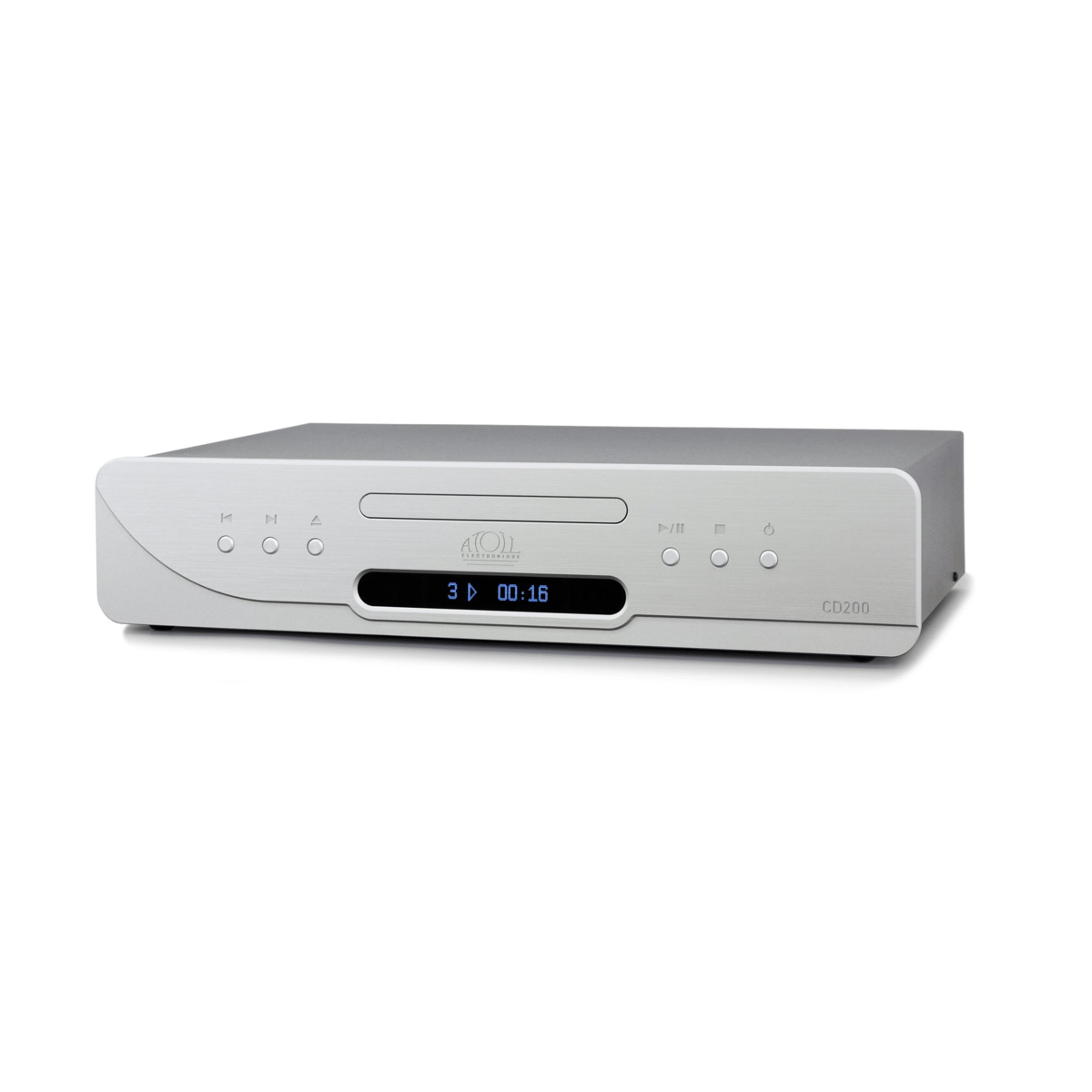

Atoll Electronique CD200 Evolution

The Evolution Series CD players benefit from many innovations in power supplies or audio and conversion stages.
In addition, these devices can now accommodate a 24 bits/192 kHz DAC board relying on the player’s internal converter.
The USB input is asynchronous.

• 8 mm brushed aluminum front panel.
• 10 regulated power supplies including a specific low-noise one for the converter.
• Linear power supply for digital stages with specific 30 VA transformer.
• Separate 10 VA transformer for audio stages.
• 1.6 VA transformer (low consumption).
• Original TEAC central CD mechanics (latest generation).
• Pure audio CD player compatible with: CD, CD-R, CD-RW, MP3, WMA-AAC.
• Double-sided circuit board with nickel/gold finish.

• BURR-BROWN PCM1792A converter:
              – 24-bit/192 kHz.
              – Dynamic range: 129 dB.
              – Signal-to-noise ratio: 129 dB.
• Low-power OLED display.
• CD-Text display.
• Differential audio output stages with discrete components biased in class A.
• ATOLL global remote control.
• Optional 24-bit/192 kHz digital card for all
• Evolution series CD players.

CONNECTIVITY

Outputs

1 Line digital outputs (right & left).
1 Coaxial digital output (to a converter D/A).
1 Optical digital output (to a converter D/A).
12V Trigger output.

Optional Digital Board

USB input (type B).
Digital input (Coaxial.).
Digital input (Optical).
