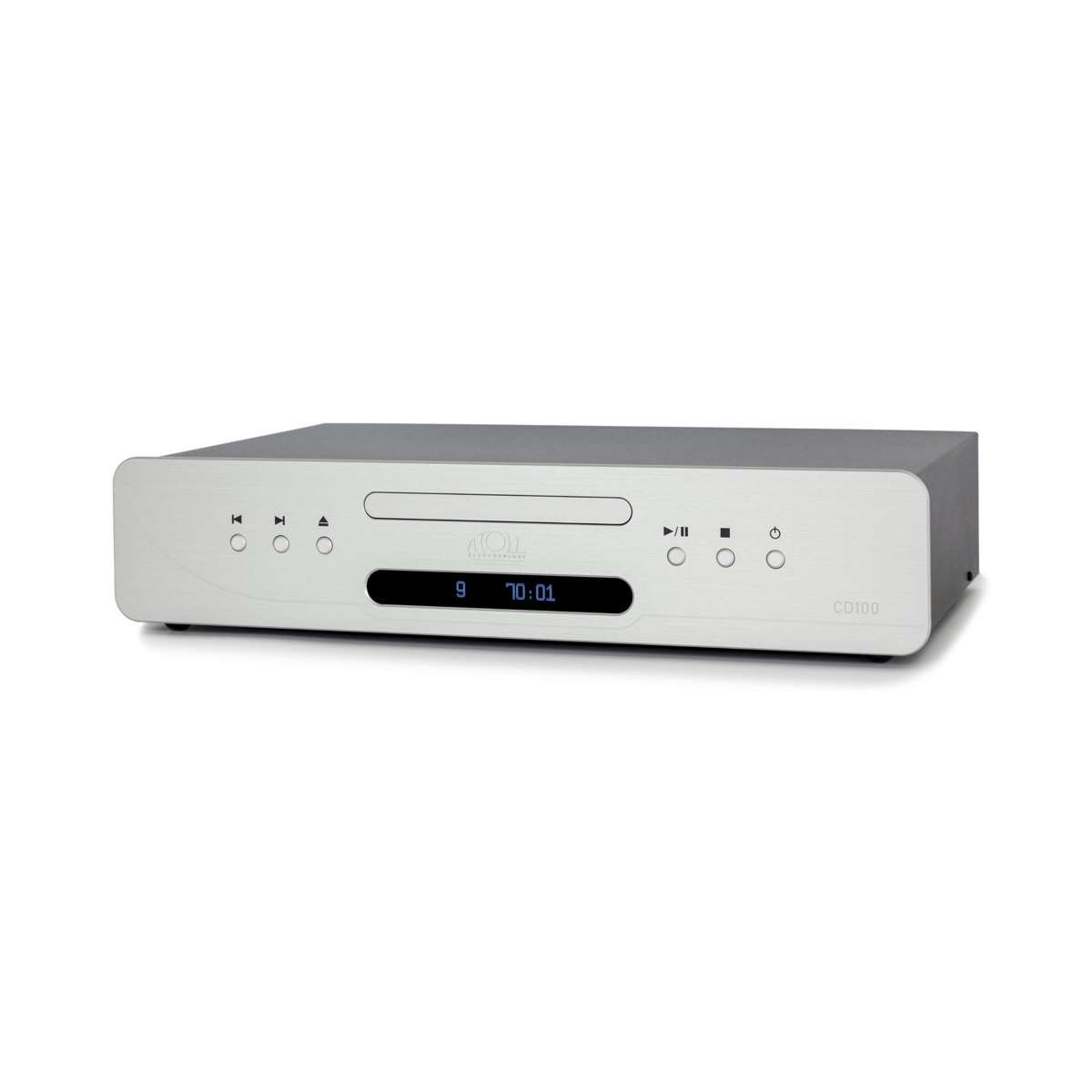

Atoll Electronique CD100 Evolution

The Evolution series CD players benefit from numerous innovations in terms of power supplies or audio and conversion stages. In addition, all these devices can now receive a 24 bits/192 kHz DAC card based on the player’s internal converter. The USB input is asynchronous.

• 4 mm brushed aluminium front panel.
• 10 regulated power supplies, including a specific low-noise one for the converter.
• Linear power supply for digital stages with a specific 30 VA transformer.
• Separate 10 VA linear transformers for audio stages.
• 1,6 VA transformer (low consumption).
• Original TEAC central CD mechanism (latest generation).
• Pure audio CD player compatible with: CD, CD-R, CD-RW, MP3, WMA-AAC.

• Double-sided circuit boards with nickel/gold finish.
• BURR-BROWN PCM1796 converter:
            – 24-bit/192 kHz.
            – Dynamic range: 124 dB.
            – Signal-to-noise ratio: 124 dB.
• Low-power OLED display.
• CD-Text display.
• Differential audio output stages with discrete components biased in class A.
• ATOLL global remote control.
• Optional 24 bits/192 kHz digital card for all Evolution series CD players.

CONNECTIVITY

Outputs

1 Line digital outputs (right & left).
1 Coaxial digital output (to a converter D/A).
1 Optical digital output (to a converter D/A).
12V Trigger output.

Optional Digital Board

USB input (type B).
Digital input (Coaxial.).
Digital input (Optical).
