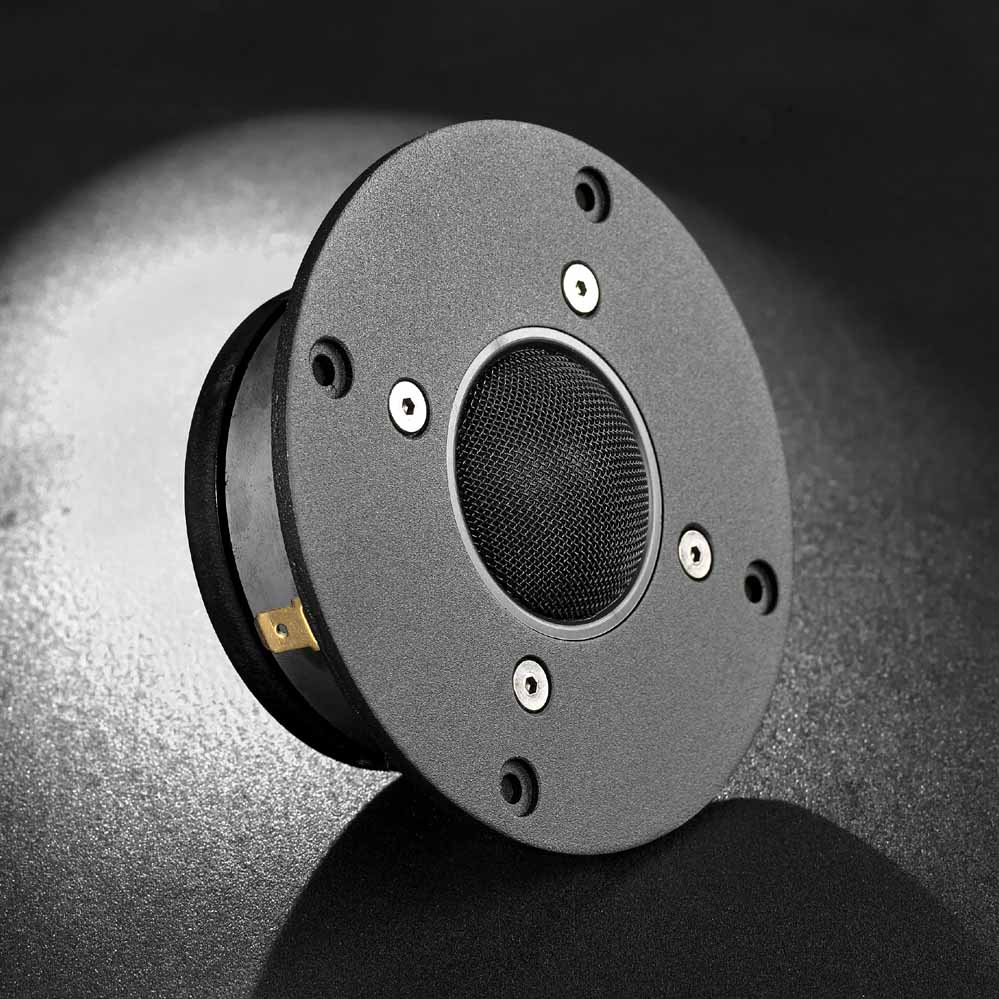

Atohm SD28CR08F

Power handling : 100 W Rms after filtering

Peak power : 300 W Max after filtering

Sensitivity : 90 dB/2.83V/1m

Impedance : 8 ohms

DC resistance : 5.8 ohms

Resonance frequency : 660 Hz

Le : 0.011 mH

Sd : 6.6 cm²

Coil diameter : 28 mm

Coil height : 3.2 mm

Air gap height : 2.5 mm

Flux density : 11000 gauss

Linear excursion : +/- 0.35 mm

Recommended roll off frequency : 1700 Hz / 12 dB
