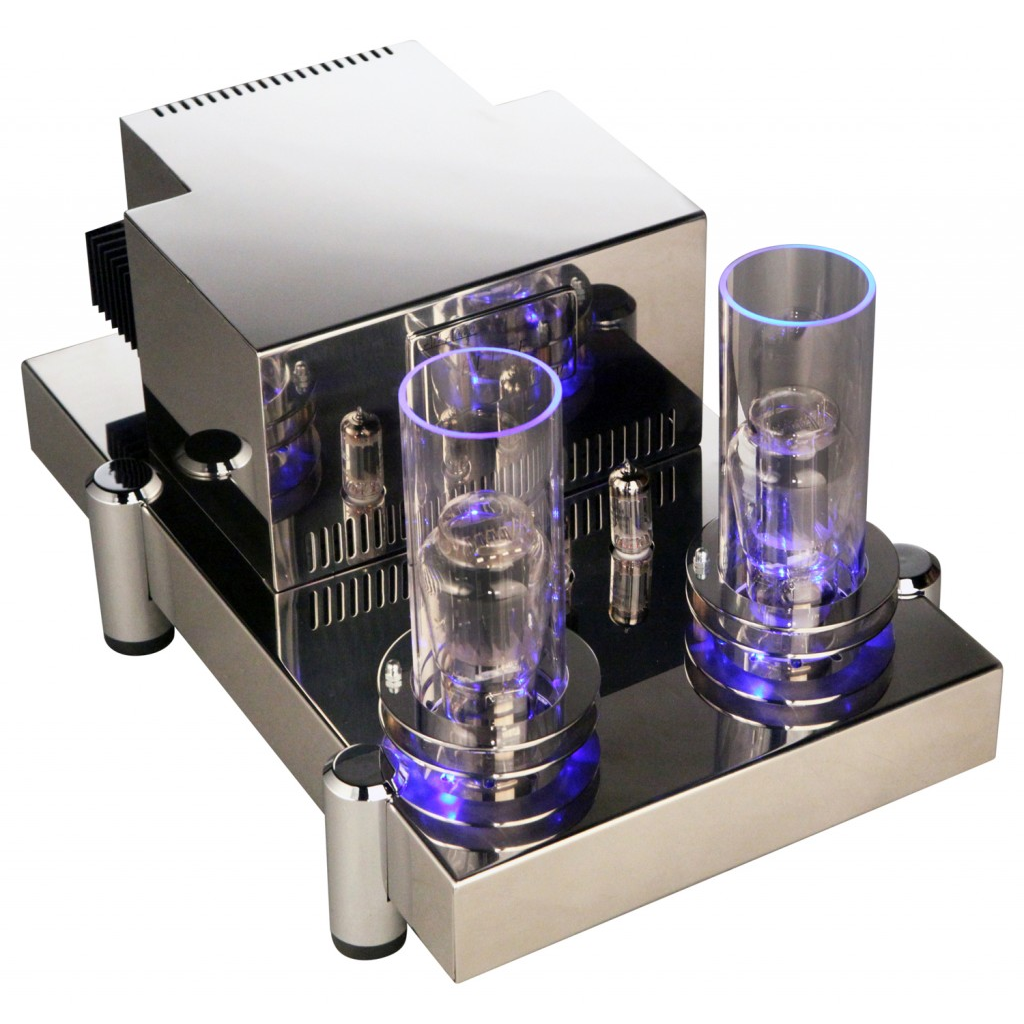

Art Audio ELISE Stereo single ended
Product Overview
Since we had gone back to less power single ended output designs for all the right reasons, we now had to search for more power from our single end designs.
The answer hence was in the new valve 520 b or the equivalent 300Bxls type@16 watts.
Performance Characteristics
"Musicality" is sometimes used as an excuse for shortcomings in detail retrieval and dynamic's, this amp has both, the ELISE excels in these and other areas.
Again like the Diavolo same topology but with solid state high current power supply incorporating 2 pye filters and a choke filter for left and right channels.
Also fitted our unique Sentry Circuit.
16 watts Triode with split bobbin multi section output transformers 4 and 8 ohm taps, 0 feedback speaker 89 db and above required for best results.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
No reviews found yet
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Type
- SINGLE END 520B
- Specification
- 18 WATTS
- Frequency Response @1 Watt
- 10 HZ TO 20 K + – 0.5 db
- Frequency Response @Full Power
- 20 HZ TO 20 K + – 1.1db
- Input Sensitivity
- 450 mv
- Input Impedance
- 220 KΩ
- Output Impedance
- 4Ω AND 8Ω
- Noise at Speaker Terminals
- Typically 1.5 mv typl.
- Feedback
- 0 dB
- Biasing
- AUTOMATIC (ELECTRONIC)
- Construction
- HYBRID PCB / HARD WIRE
- Components
- RESISTORS 1% METAL OXIDE CAPACITORS LOW INDUCTANCE LOW ESR COUPLING CAPS HOVLAND
- Transformers
- MULTI SECTION SPLIT BOBBIN
- Rectifier
- SOLID STATE WITH A SERIES VALVE DELAY
- Drivers
- 6922 AND 12 BH7
- Heaters
- DC REGULATED
- Setup
- NO SET UP REQUIRED PLUG AND PLAY NO MATCHING ON POWER VALVES MATCHING REQUIRED ON DRIVERS
- Sentry Circuit
- THE UNIT IS FITTED WITH OUR CURRENT MONITOR CIRCUIT PROVIDES AMP PROTECTION AGAINST VALVE FAULTS 40 SECOND HT DELAY ON SWITCH ON
- Size
- 18 inches wide 14 inches deep 9 inch high
- Weight
- 30 kg
Manufacturer's Description — Art Audio
Product Overview
Since we had gone back to less power single ended output designs for all the right reasons, we now had to search for more power from our single end designs.
The answer hence was in the new valve 520 b or the equivalent 300Bxls type@16 watts.
Performance Characteristics
"Musicality" is sometimes used as an excuse for shortcomings in detail retrieval and dynamic's, this amp has both, the ELISE excels in these and other areas.
Again like the Diavolo same topology but with solid state high current power supply incorporating 2 pye filters and a choke filter for left and right channels.
Also fitted our unique Sentry Circuit.
16 watts Triode with split bobbin multi section output transformers 4 and 8 ohm taps, 0 feedback speaker 89 db and above required for best results.
