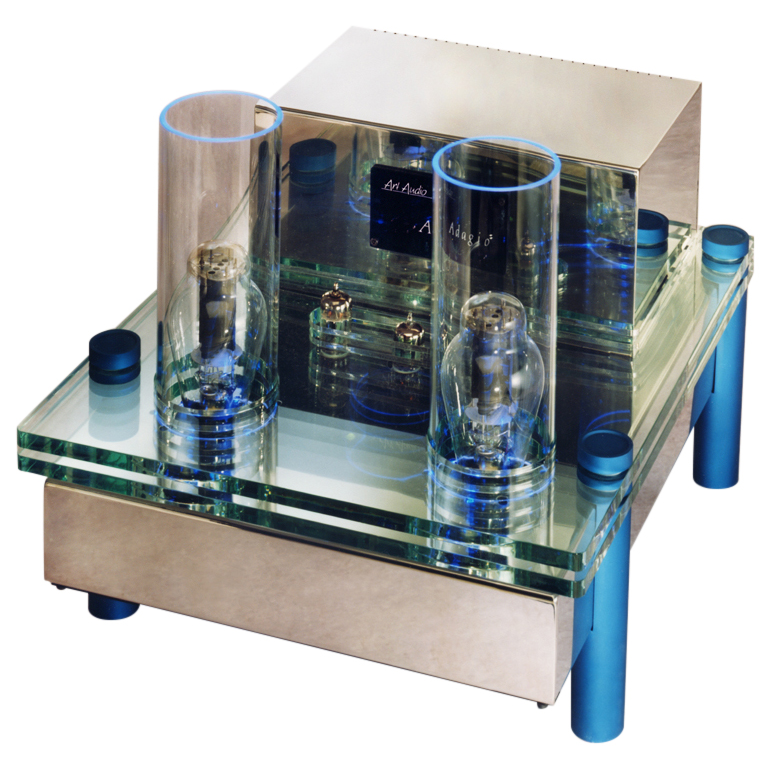

Art Audio ADAGIO 520B SINGLE ENDED MONOBLOCKS
Product Description
The advantage of parallel single end design, twice the power with little increase in distortion. Twice the current for the same voltage, and of course a larger damping factor.
The unique SENTRY CIRCUIT Electronic over current protection with soft start puts the amplifier into standby mode until any fault is removed and prevents the electronics being damaged under valve failure conditions.
Separate choke filtered power supply for each output valve, 2 per mono block.
Automatic bias control, no setting up, power valves must be matched.
Uses Hovland Musicaps and 1% metal film resistors (upgrades versions available)
Output Transformers
We take great pride in our output transformers, recognising that in many ways, they are the defining part of any valve amplifier. In the Adagio they are really special, with a large core (400 wt capable) designed for high damping, split bobbin multi section with grain orientated laminations.
Our ultimate single end amplifier with awesome dynamics and exceptional linearity sensational 3-D sound staging brings the live event right into your living room, with all the emotion the musicians have mastered in their performance.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Power
- 28 WATTS
- Type
- PARALLEL SINGLE END 520b
- Frequency Response @1 Watt
- 10 HZ TO 22 KHZ + – 0.5 db
- Frequency Response @Full Power
- 20 HZ TO 20 KHZ + – 1 db
- Input Sensitivity
- 500 mv
- Input Impedance
- 80 KΩ
- Output Impedance
- 8Ω
- Noise at Speaker Terminals
- TYPICALLY 1.2 mv
- Feedback
- 0dB
- Biasing
- AUTOMATIC WITH SENTRY PROTECTION
- Construction
- HYBRID PCB HARD WIRE
- Components
- RESISTORS 1% METAL OXIDE CAPACITORS LOW INDUCTANCE LOW ESR COUPLING CAPS HOVLAND
- Transformers
- MULTI SECTION SPLIT BOBBIN
- Rectifier
- SOLID STATE
- Drivers
- 6 922 AND 12 BH7
- Heaters
- DC REGULATED
- Set Up
- NO SET UP REQUIRED PLUG AND PLAY NO MATCHING ON POWER VALVES MATCHING REQUIRED ON DRIVERS
- Size
- 13 ½ inches wide 18 inches deep 10 inches high
- Weight
- 25 kg
Manufacturer's Description — Art Audio
Product Description
The advantage of parallel single end design, twice the power with little increase in distortion. Twice the current for the same voltage, and of course a larger damping factor.
The unique SENTRY CIRCUIT Electronic over current protection with soft start puts the amplifier into standby mode until any fault is removed and prevents the electronics being damaged under valve failure conditions.
Separate choke filtered power supply for each output valve, 2 per mono block.
Automatic bias control, no setting up, power valves must be matched.
Uses Hovland Musicaps and 1% metal film resistors (upgrades versions available)
Output Transformers
We take great pride in our output transformers, recognising that in many ways, they are the defining part of any valve amplifier. In the Adagio they are really special, with a large core (400 wt capable) designed for high damping, split bobbin multi section with grain orientated laminations.
Our ultimate single end amplifier with awesome dynamics and exceptional linearity sensational 3-D sound staging brings the live event right into your living room, with all the emotion the musicians have mastered in their performance.
