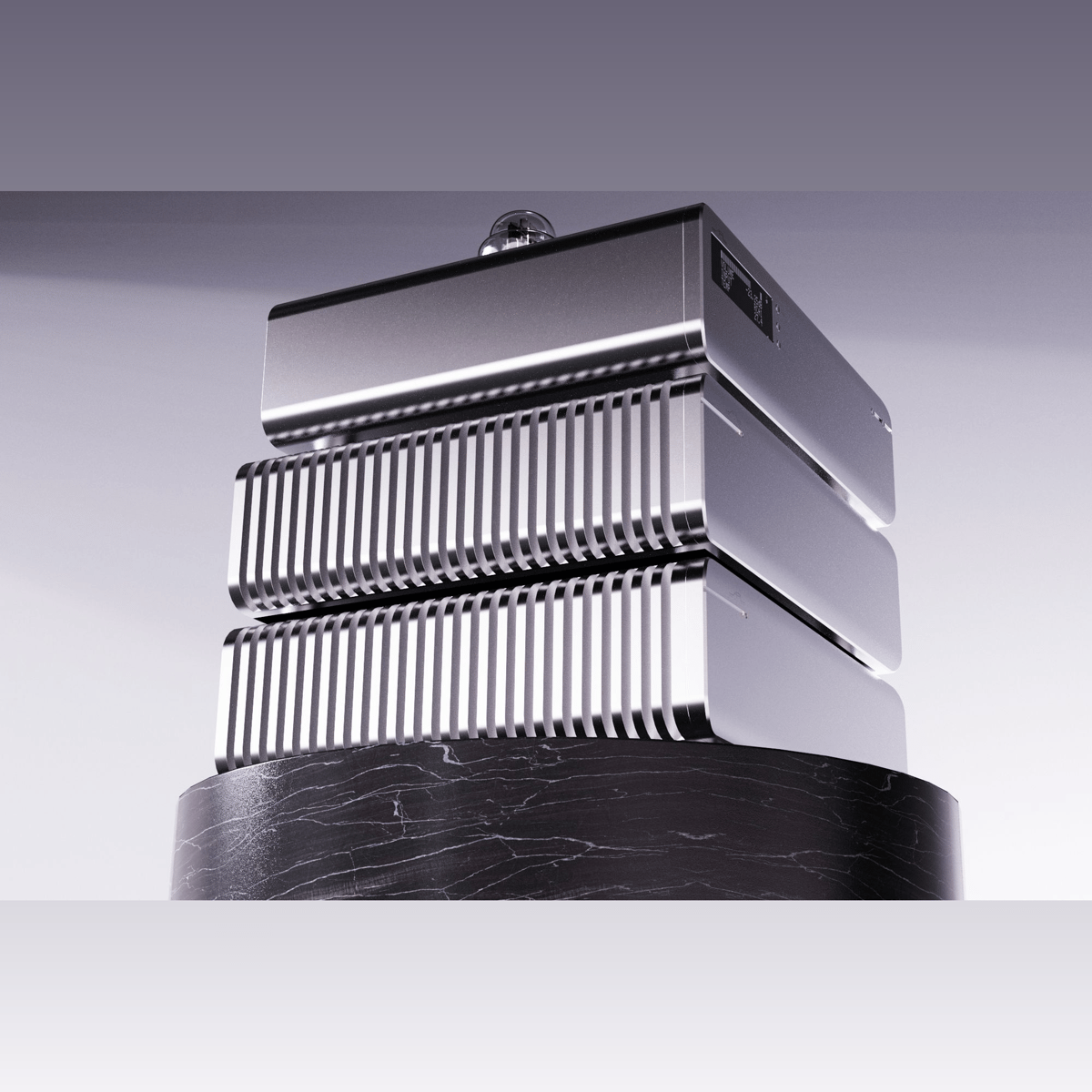

APL Hifi HAS-GR
The HAS-GR amplification system is an all-hand-made boutique, designed for the most enthusiastic audiophiles who cannot settle for anything else but the absolute best.
The HAS-GR is not to be confused with a tube preamplifier driving two solid-state monoblocks. Every power amplifier has a voltage gain stage, in order to amplify the small signal coming from the preamplifier or any source, and a power current stage so it can drive the speakers. The HAS-GR Control Unit provides all the voltage gain using ECC99 driver and PX25 output tubes, while the two Power Units provide the ample current needed to drive the speakers, and have no voltage gain. In other words, the HAS-GR system is a Unique Modular Hybrid Integrated Power Amplifier in a class of its very own.
Please see Features for more details.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
No reviews found yet
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Control Unit
- Attenuator control module with precision 0.75dB step and level memory for each input. Class A tube gain stage with ECC99 driver and PX25 tubes. Pure resistive load for the output tubes, resulting in the most linear operation. Only two tube gain stages per channel. Zero Negative Feedback. One coupling capacitor on the signal path per channel, using a hand-made Duelund CAST-Cu. One custom Lundahl interstage coupling audio transformer per channel. Non-magnetic resistors of the highest possible quality. High grade, specially selected rectifiers and passive components. Completely separated dual-mono design, both signal and power supply paths. Esprit Audio, France internal wiring for the signal path. Solid OFC wiring for the power supply. No mechanical switching devices on the signal path or power supply lines. Choke loaded power supply using high quality Lundahl inductors. Delayed High-Voltage power for increased tube life. No power transformers near the tubes.
- Power Units
- Paralleled current conversion power modules featuring special IGBT devices. 400W at 4 Ohms with 52 Amperes available current per channel. Balanced operation. No voltage gain. Zero Negative Feedback. Custom hand-made power transformers. Custom hand-made power inductors. Ultra fast rectifiers. 490,000uF capacitor filter bank per channel. Esprit Audio, France internal wiring for the signal path. Solid OFC internal wiring for the power supply. Non-magnetic resistors on the signal path. No capacitors on the signal path. No mechanical switching devices on the signal path. Intelligent microprocessor controlled protection circuit. Includes the power transformers for the Control Unit tube power supply for each channel. Soft start.
- Convenience and mechanical
- Large FLD display for the Control Unit with custom selectable colors Rose, Blue or Green. Please specify when ordering. Multi color LED indicator for the Power Units. Master and Slave microprocessor control with last settings memory. Average temperature display for the power devices heat sinks. Infrared Remote Control capable of controlling DSD-GR and DTR-MR SE as well. All-Aluminum precision machined enclosures. Three umbilical cords per channel for signal, power and control lines.
- Warranty
- 2-years warranty/6-months for the tubes with an available 3-year warranty extension, with an online product registration, excluding the tubes
- Analog Inputs and Outputs for Control Unit
- Two Single Ended RCA inputs with top line Furutech connectors. Two Balanced input with top line Furutech XLR connectors. Input impedance 12,000 Ohms. Input sensitivity – 1.2V RMS to full rated power output. Balanced 5-pin signal output for connecting the Power Units.
- Analog Inputs and Outputs for Power Units
- Balanced XLR signal input for connecting to the Control Unit. Two pairs speaker outputs for bi-wiring with top line Furutech connectors. Output power rating – 400W at 4 Ohms per channel. Available output current before clipping – 52 Amperes per channel.
- Speaker Protection
- Intelligent Microprocessor controlled speaker and system protection. Power supply, temperature and speaker outputs monitoring. Special mechanical-contacts-free power signal switching devices.
- Power input and fuses
- IEC power inlets made by Furutech NCF series for Power Units. IEC power inlet with integrated switch and fuse for Control Unit. Note! Control Unit does not require a high-grade power cable. 120V or 230V / 50-60Hz, factory pre-set. Note! Other power input voltages available on request. 2A and 5A special ceramic fuses for the Power Units. 0.1A fuse for Control Unit. 7-pin connectors for tube power between PU and CU for each channel.
- Dimensions and weight Control Unit
- W435 x H130 x D360 millimeters. Front panel width – 450 millimeters. Height with feet – 160 millimeters. 19kg unpacked.
- Dimensions and weight Power Units
- W450 x H130 x D410 millimeters Height with feet – 160 millimeters 40kg each, unpacked
- Included Accessories and tubes
- KR Audio PX25 tubes pair. JJ Electronic ECC99 tubes pair. S-Video 4-pin cables pair for control. Handmade 7-pin cables pair for power between PU and CU made by Esprit Audio in France. Handmade XLR cables pair for signal between CU and PU mare by Esprit Audio in France. Note! XLR and 7-pin signal/power cables maximum 1.8 meters. Infrared Remote capable of controlling DSD-GR as well. User Manuals.
Manufacturer's Description — APL Hifi
The HAS-GR amplification system is an all-hand-made boutique, designed for the most enthusiastic audiophiles who cannot settle for anything else but the absolute best.
The HAS-GR is not to be confused with a tube preamplifier driving two solid-state monoblocks. Every power amplifier has a voltage gain stage, in order to amplify the small signal coming from the preamplifier or any source, and a power current stage so it can drive the speakers. The HAS-GR Control Unit provides all the voltage gain using ECC99 driver and PX25 output tubes, while the two Power Units provide the ample current needed to drive the speakers, and have no voltage gain. In other words, the HAS-GR system is a Unique Modular Hybrid Integrated Power Amplifier in a class of its very own.
Please see Features for more details.
