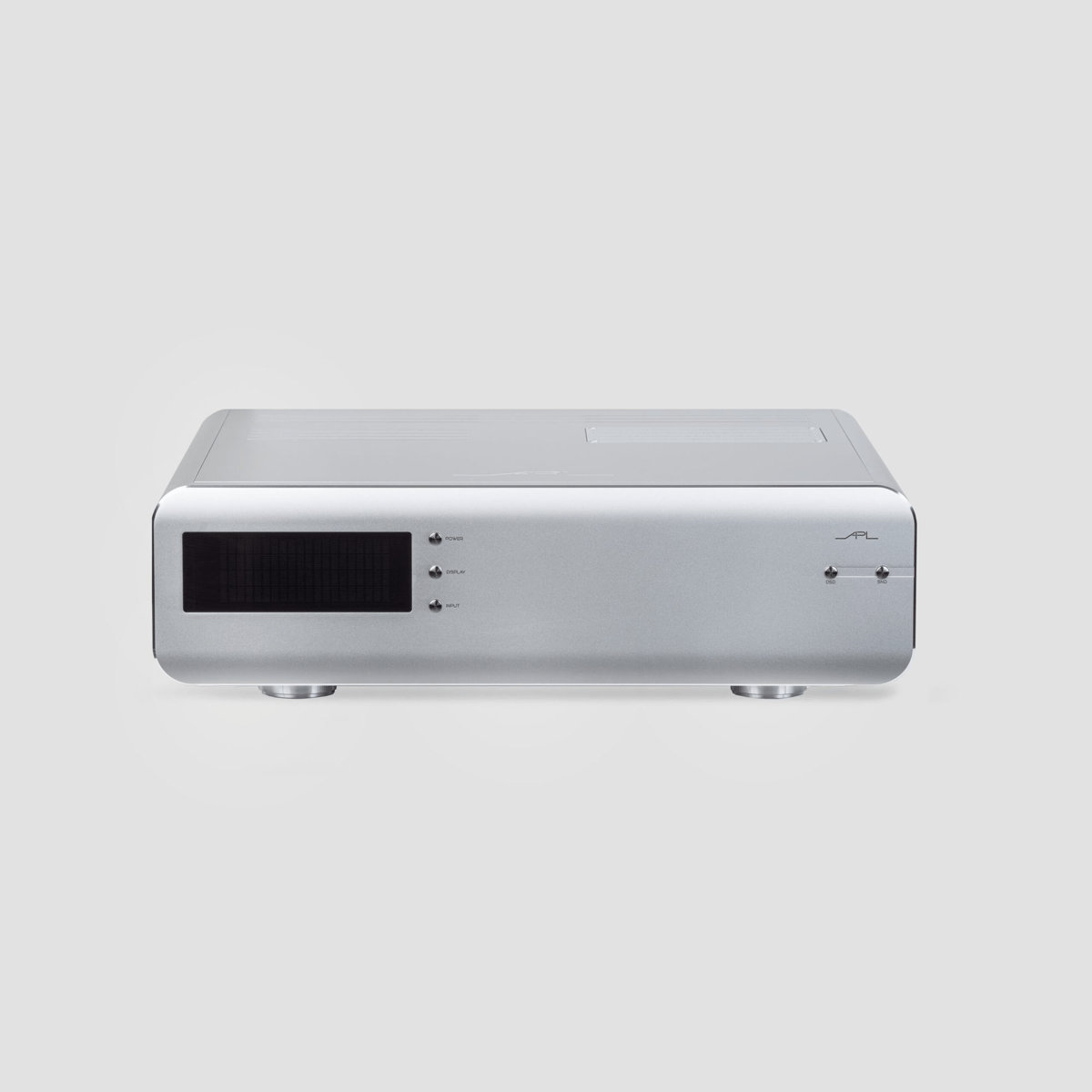

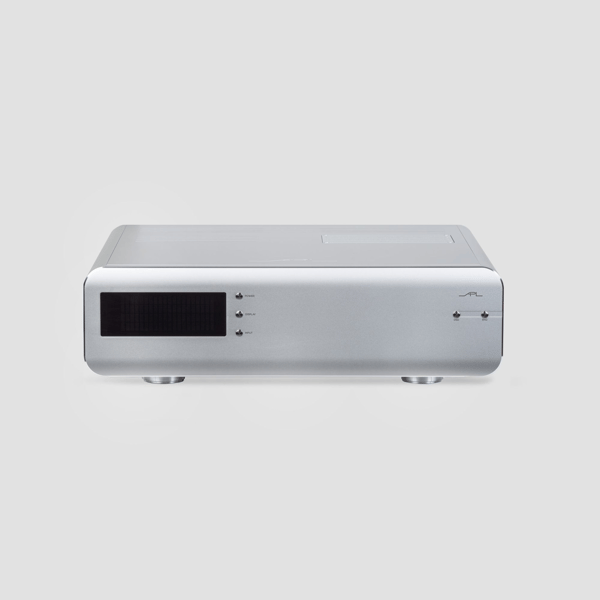

APL Hifi DSD-GR Ultimate
The DSD-GR is our top-line Digital to Analog converter, specifically made for the most enthusiastic audiophiles who prefer analogue-like sound, comparable to state-of-the-art vinyl and respectable reel-to-reel machines.
It is an all-hand-made boutique, designed and built with the best possible audio quality in mind, cost-no-object.
Inspired by pure analog sound quality, the DSD-GR pleases with a very natural sonic character that is truly unique.
From the DSD512 processing rate to the differential transformer-coupled Class-A tube output stage, the DSD-GR proves technology and refinement of the highest level.
The DSD-GR is based on a modular design, allowing a cost-effective future upgradability of any internal stage.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Digital Processing
- Proprietary asynchronous USB input module accepting PCM up to 384kHz/32 bit, and up to DSD512 in NativeDSD format. Both 44.1kHz and 48kHz - based DSD data is accepted. Proprietary 64 bit PCM to DSD converter module with DSD256 and DSD512 capabilities, user selectable from the remote control. Proprietary 64 bit Normal and Slow linear phase filters, user selectable for PCM processing. Zero filter mode available for Non Oversampling (NOS) mode. Pure DSD Digital to Analog conversion without any additional Digital processing. Proprietary Pure DSD Digital to Analog conversion module using non-magnetic resistors of the highest possible quality. Two Sound modes for the DSD modulator. Ultra-low-phase noise, Femto-jitter Master Clocks. Proprietary RJ-45 input woking in balanced I2S mode for connecting with our digital sources.
- Analog Output Stage
- Custom Lundahl interstage and output transformers with Oxygen Free Copper windings. Pure Class-A, Differential tube stage featuring ECC99 tubes. Entirely passive current to voltage conversion and DSD analog filtering. Zero Negative Feedback. Non-magnetic resistors. No Op Amps. No mechanical switches or relays on the signal path. Oxygen Free Copper internal wiring featuring Esprit Audio, France cables for the critical signal paths.
- Power Supply
- Oversized Custom R-Core balanced main power transformer with OFC windings. Delayed High-Voltage supply, after tubes warm-up, for increased tubes life. High quality Lundahl choke for the tube power supply. High grade, specially selected rectifiers and passive components.
- Convenience and mechanical
- Large FLD display made by Noritake in Japan. Custom selectable color filters for the display. Red, Blue or Green. Microprocessor control with last settings memory. Aluminum Infrared Remote Control. All-Aluminum enclosure with machined 20 millimeters thick front panel.
- Warranty
- 2-years warranty/6-months for the tubes with an available 3-year warranty extension, with an online product registration, excluding the tubes.
- Digital Inputs
- Two RCA Coaxial digital inputs. AES/EBU professional standard balanced digital input. TOSLINK Optical digital input. Note! RCA, AES/EBU and Optical inputs accepting up to 192kHz/24bit PCM. USB input accepting PCM up to 384kHz/32bit, up to DSD128 in DoP and up to DSD512 in NativeDSD format. Both 44.1kHz and 48kHz based DSD. Note! All PCM rates from RCA, AES/EBU, Optical and USB digital inputs are converted to DSD128, DSD256 and DSD512 in Zero filter mode. Two DTR inputs using balanced I2S transmission protocol for connecting to DTR-MR digital transport and DNP-SR network player.
- Analog Outputs
- Single Ended RCA outputs with top-line Furutech Rhodium plated RCA connectors. Balanced XLR outputs with top-line Furutech Rhodium plated connectors. Note! RCA and XLR outputs cannot be used simultaneously. Please select RCA or XLR from switch on the back. Output level – 2.5V RMS at 0dBFS. Output impedance – approximately 100 Ohms.
- Power input and fuses
- IEC power inlet made by Furutech NCF series. 115V or 230V / 50-60Hz, factory pre-set. Other power input voltages available on request. 0.1A fuse for standby power supply. 2A special ceramic fuse.
- Dimensions and weight
- W450 x H120 x D380 millimeters. Height with feet included – 140 millimeters. Weight – 24.5kg unpacked.
- Accessories
- Infrared Remote Control. User Manual. Certificate of Authenticity
