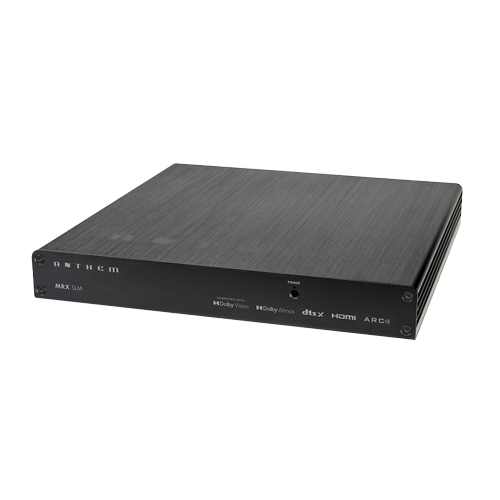

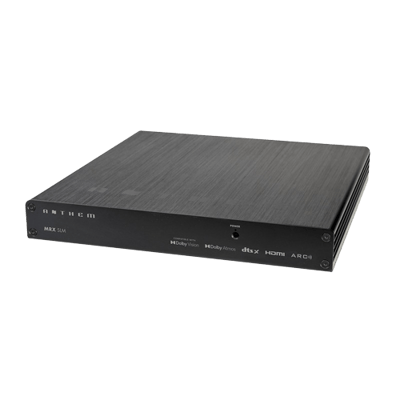

Anthem MRX SLM

Specifications

PREAMPLIFIER + AMPLIFIER (8-ohm loads)

Frequency Response 20 Hz - 20 kHz +/- 0.2 dB ch 1-5 THD+N (1W output, 20-20 kHz BW) < 0.005% ch 1-5 S/N Ratio (1 W output, IEC-A filter) SNR: 93 dB ch 1-5 S/N Ratio (max power output, IEC-A filter) SNR: 109 dB ch 1-5

SPEAKER IMPEDANCE

Compatible with 4 Ohms or higher impedance Yes

MAXIMUM CONTINUOUS OUTPUT (1% THD)

Power measurements underway to ensure compliance with new FTC regulations

POWER CONSUMPTION

Typical Load (All Ch 1/8th Power, 8ohm) < 50 W Standby (IP Control Enabled) < 2 W Standby (HDMI Bypass Enabled) < 5 W

DIMENSIONS

Height (without feet) 1.5” / 3.8 cm Height (with feet) 1.7” / 4.3 cm Height (with rackmount kit) 1U / 1.75” / 4.4 cm Width 11” / 27.9 cm Width (with rackmount Kit) 19” / 43.2 cm Depth 11” / 27.9 cm Depth (including power cord) 13” / 33.0 cm

WEIGHT

6.6 lb / 3.0 kg

POWER REQUIREMENT

120 V version In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz. 220-240 V version In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.
