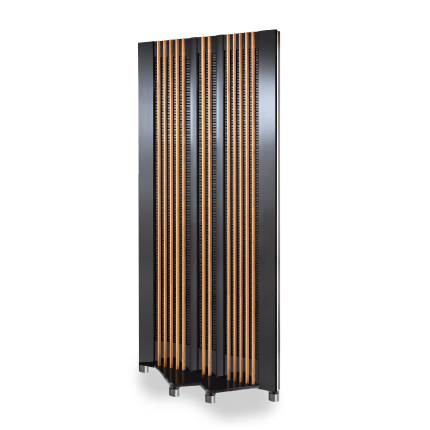

Alsyvox Audio Design RAFFAELLO
Our RAFFAELLO model is very exclusive and is made on request only. It is a symmetrical design with double midtweeter and double woofer at the sides of the central supertweer. This is making a total width of 0.85m (33.5″) each channel with a total height of 2.03m (80″), a weight of 180Kg (400lb) per channel excluding crossovers and a total woofer surface of about 1.7 sqm (19sqft) on the two channels.
The symmetrical design brings better interaction with room walls and better imaging.
Also double transducers allow higher dynamics and resolution.
It is possible to add subwoofer panels, same as CARAVAGGIO.
It comes with 2 separate acrylic passive crossovers using an exclusive topology, connecting cables between crossover and speaker are included. These are XX quality as standard, dimensions 680x450x130mm weight 50Kg each including transparent acrylic base.
High sensitivity of up to 98dB makes possible to use virtually any amplifier.
It is recommended for rooms bigger than 50sqm (550sqft) and wider than 5.5m (18ft).
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Watt'n Potatoes
Not yet rated
This product doesn't have a Watt'n Potatoes score or editorial summary yet.
WATT RECOMMENDS
Save your favorites. Compare them anytime.
Create a free HiFi Hub account to save products to your Wishlist and compare your favorites side by side.
Reviews & Sources
Online Reviews & Mentions
YouTube Reviews
No reviews found yet
Forum Mentions
No forum mentions found yet
Specifications
- Speaker heigth (mm)
- 2030
- Baffle width (mm)
- 850
- Room minimum recommended width (m)
- 5
- Baffle thickness (mm)
- 54
- Woofer, MD, TW and STW height (m)
- 1.68
- Number of Woofers
- 2
- Woofers width (mm)
- 250 x 2
- Woofers surface (cm2)
- 8400
- Woofers max stroke (mm)
- 18
- Woofers air volume (cm3)
- 15120
- Midrange width (mm)
- n/a
- Mid Tweeter width (mm)
- 25 x 2
- Super Tweeter width (mm)
- 9
- Reference sensitivity (dB)
- 97
- Crossover Frequencies (Hz)
- 750-4500
- Frequency Response (Hz)
- 25-40000
- Nominal Impedance (Ohm)
- 4
- Weight (Kg) just one channel, not including external crossover
- 180
Manufacturer's Description — Alsyvox Audio Design
Our RAFFAELLO model is very exclusive and is made on request only. It is a symmetrical design with double midtweeter and double woofer at the sides of the central supertweer. This is making a total width of 0.85m (33.5″) each channel with a total height of 2.03m (80″), a weight of 180Kg (400lb) per channel excluding crossovers and a total woofer surface of about 1.7 sqm (19sqft) on the two channels.
The symmetrical design brings better interaction with room walls and better imaging.
Also double transducers allow higher dynamics and resolution.
It is possible to add subwoofer panels, same as CARAVAGGIO.
It comes with 2 separate acrylic passive crossovers using an exclusive topology, connecting cables between crossover and speaker are included. These are XX quality as standard, dimensions 680x450x130mm weight 50Kg each including transparent acrylic base.
High sensitivity of up to 98dB makes possible to use virtually any amplifier.
It is recommended for rooms bigger than 50sqm (550sqft) and wider than 5.5m (18ft).
