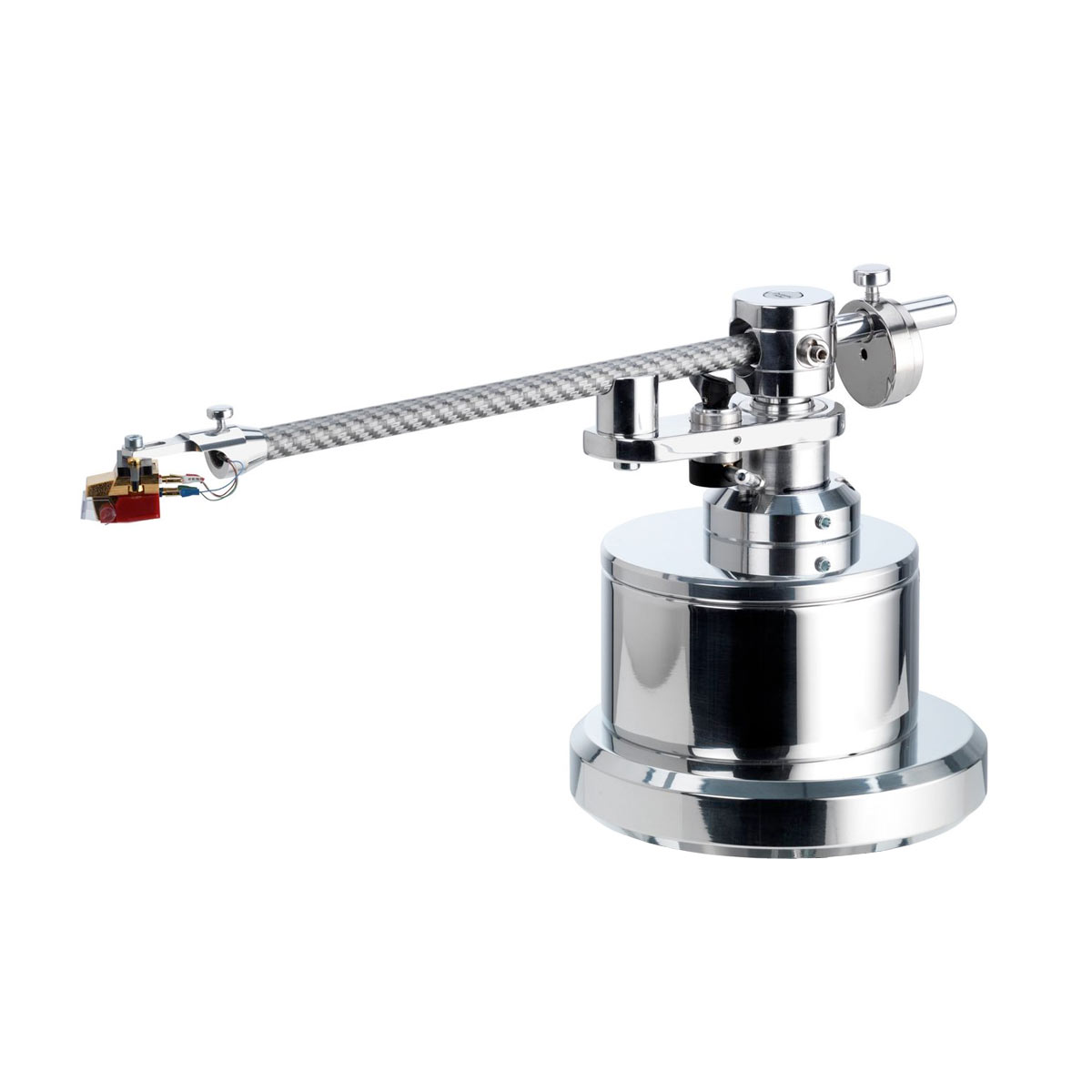

Acoustic Solid Tonarm WTB 230 9″

Construction Principle

Radial tonearm Horizontally and vertically mounted with Swiss precision steel balls
Bearing play finely adjustable both horizontally/vertically
Lateral dampers
Carbon tube silver or black, also painted in color
Headshell and attachments Aircraft aluminum polished to a high gloss by hand

Offset Angle

23.5° Angular distance between the tonearm axis and the pickup system

Pickup Weight

5 – 20 g

Mounting Distance

216 mm Distance between record player axis and tonearm pivot point

Effective Length

233.75 mm Distance between tonearm pivot point and pickup tip

Overhang

17.75 mm Distance between pickup tip and record player axis

Signal Cable

Continuous without interruption, fitted with RCA plugs, XLR possible on request

Tonearm Mounting Hole

30 mm

Weight Arm

325 g (without weight)

Counterweight

115 g

Complete Weight

440 g

Weight

0.44 kg

Size

47 × 37 × 19 cm

Material

Carbon Silver

Scope of Delivery

1 Tonearm WTB 230 9"
