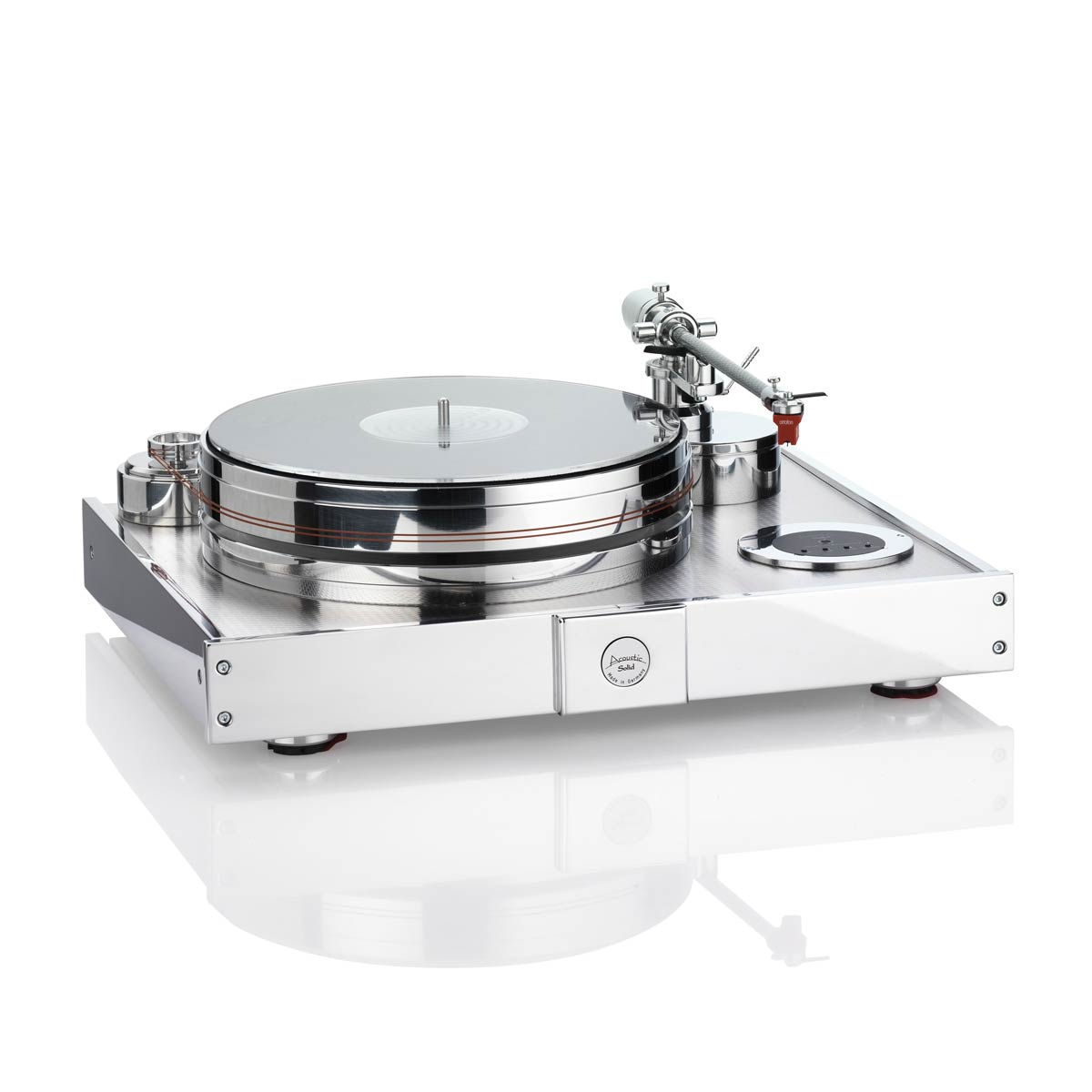

Acoustic Solid Solid Vintage Full Exclusive

Design Principle

Sandwich construction made of aluminum and stainless steel
Internally with Plastodem sound insulation
Feet with special dampers
F max 400 N

Speed Range

Convenient speed switching
at the touch of a button 33.3, 45 rpm
Fine adjustment + or – possible at any time at the touch of a button

Bearing

Ground stainless steel axle

cast bushing, ruby ​​bearing base via special Teflon washers.
Special resonance-optimized material with polished ceramic ball

Drive

Berger Lahr synchronous motor with
belt drive
Belt made of nylon silicone mixture
Microprocessor controlled electronics

Record Player

Made of solid aluminum, 8 kg platter, 40 mm thick
CNC precision turned, hand polished

Turntable Support

Support mat made of genuine leather
4mm plexiglass support

Synchronism

0.08% (measured with Ortofon measuring computer)

Electrics/Power Supply

240 volts 47-63 hertz 0.4 amps
Output 32 volts 0.46 amps maximum
Switching power supply with cold device connector cable

Total Weight

20 kg weight without tonearm

Weight

20 kg

Size

50 × 39 × 18 cm

Material

Aluminum

Scope of Delivery

1 record player
