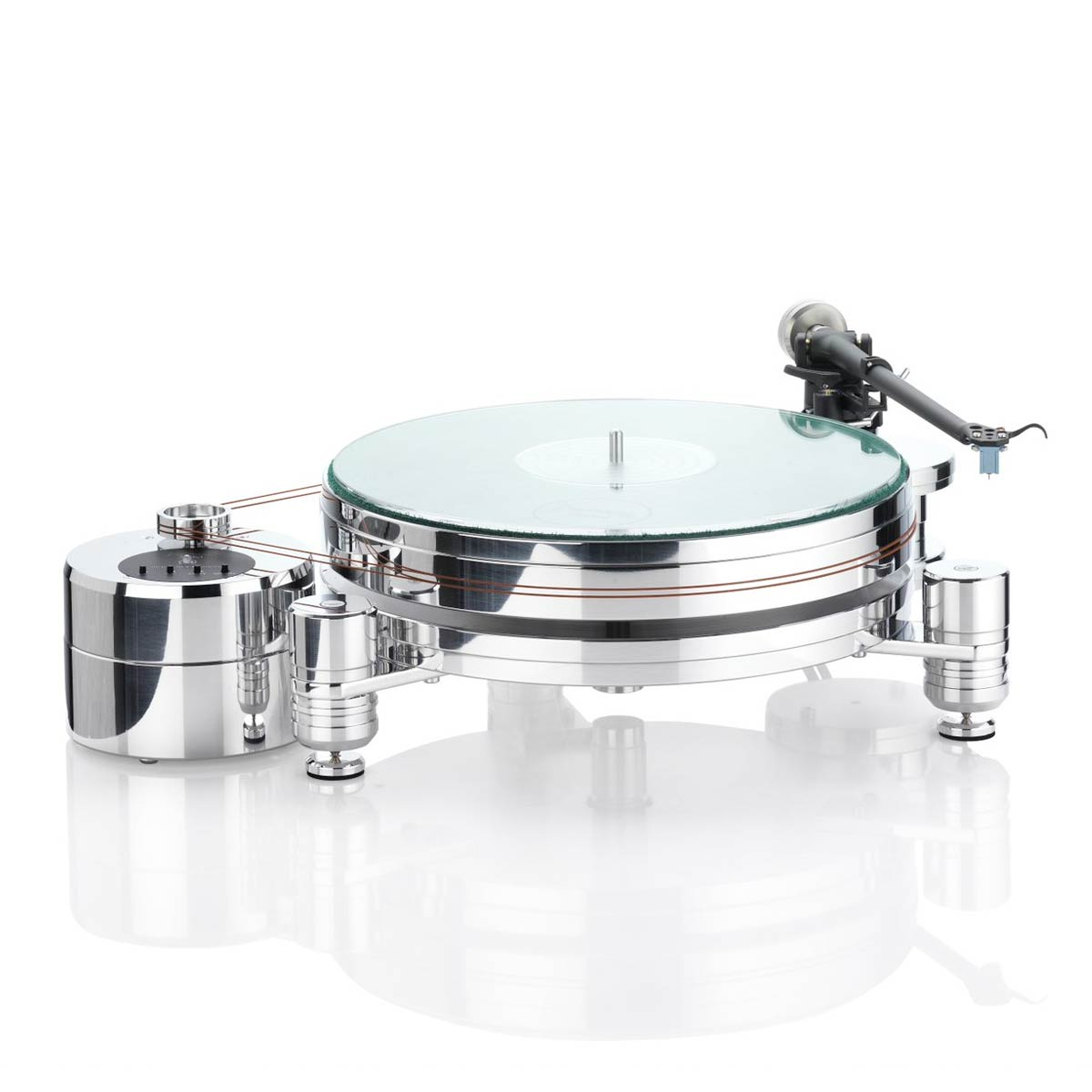

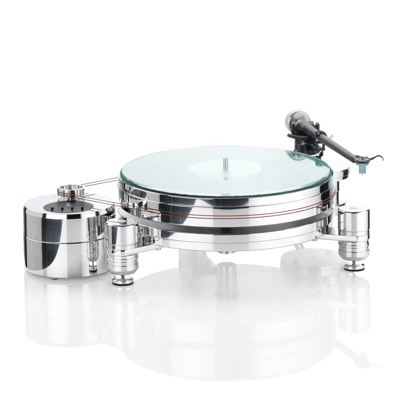

Acoustic Solid Solid 311 Metall

Design principle

Acoustically optimized drive shape
Base support plate 50 mm Ø 180mm and feet made of solid aluminum
Resonance-optimized and decoupled via special Teflon washers and silicone mixture dampers
Height adjustment via threaded spikes, decoupled via special felt feet

Speed ​​range

Convenient speed switching
at the push of a button 33.3, 45 rpm
Fine adjustment + or – possible at any time at the push of a button

bearing

Ground stainless steel axle

cast bushing, ruby ​​bearing base with special Teflon washers
Special resonance-optimized material with polished ceramic ball

drive

Berger Lahr synchronous motor with
Belt drive (2-way)
Belt made of nylon silicone mixture
Microprocessor controlled electronics

turntable

Made of solid aluminum 8 kg turntable thickness 40 mm
CNC precision turned and hand polished

Turntable support

Support mat made of genuine leather
4mm plexiglass support

synchronization

0.08% (measured with Ortofon measuring computer)

Electrical/Power supply

240 volts 47-63 Hz 0.4 amps
Output 32 volts 0.46 amps maximum
Switching power supply with cold device connector cable

total weight

24 kg weight without tonearm

weight

24 kg

size

31 × 31 × 17 cm

scope of delivery

1 record player

material

Aluminum

tonearm

WTB 370 including high-quality pickup system

control

Microcontroller M2 with crystal oscillator and fine adjustment, plug and play
