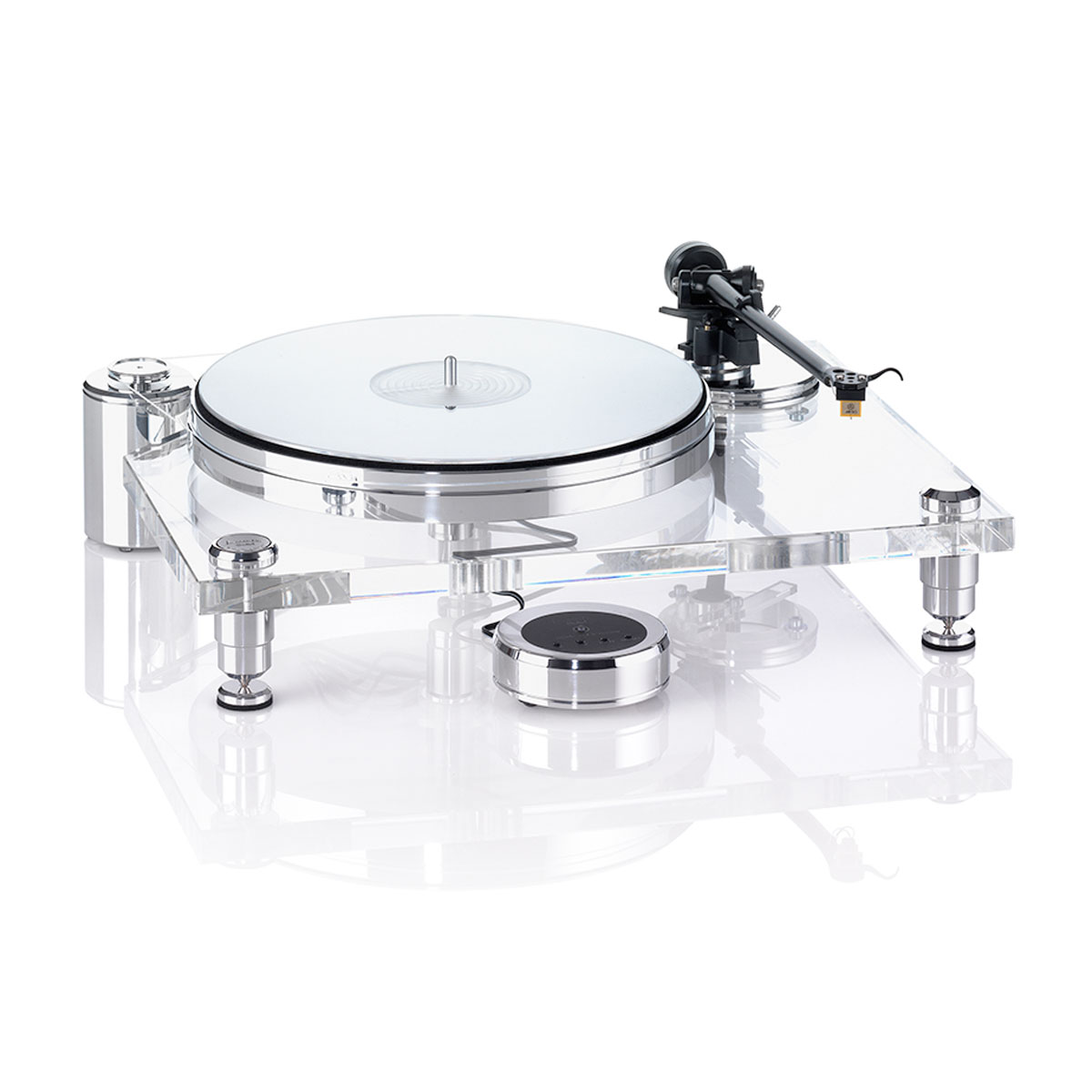

Acoustic Solid Solid 111 Plexiglas

Construction Principle

Acoustically optimized platter shape
made of 20 mm thick plexiglass plate
Edges polished all around
Height adjustment via threaded spikes
Decoupled via special metal felt washers

RPM Range

Convenient speed switching by button press 33, 45 RPM
Fine adjustment + or – possible at any time by button press

Bearings

Ground steel shaft

Cast bearing housing, ruby bearing bottom via special Teflon washers
Special resonance-optimized material with polished ceramic ball

Drive

Berger Lahr synchronous motor with
Belt drive
Belt made of nylon silicone mixture
Microprocessor-controlled electronics

Platter

Made of solid aluminum 6 kg platter thickness 30 mm
CNC precision-turned and hand-polished

Platter Mat

Felt mat
4 mm plexiglass mat

Runout

0.08% (measured with Ortofon measurement computer)

Electricity/Power Supply

240 Volts 47-63 Hertz 0.4 Amperes
Output 32 Volts 0.46 Amperes maximum
Switching power supply with cold appliance plug cable

Total Weight

11 kg weight without tonearm

Weight

20 kg

Dimensions

47 × 37 × 19 cm

Material

Aluminum, Plexiglass

Tonearm

WTB 370 including high-quality cartridge system

Scope of Delivery

1 Turntable

Control

Microcontroller M2 with quartz generator and fine adjustment
