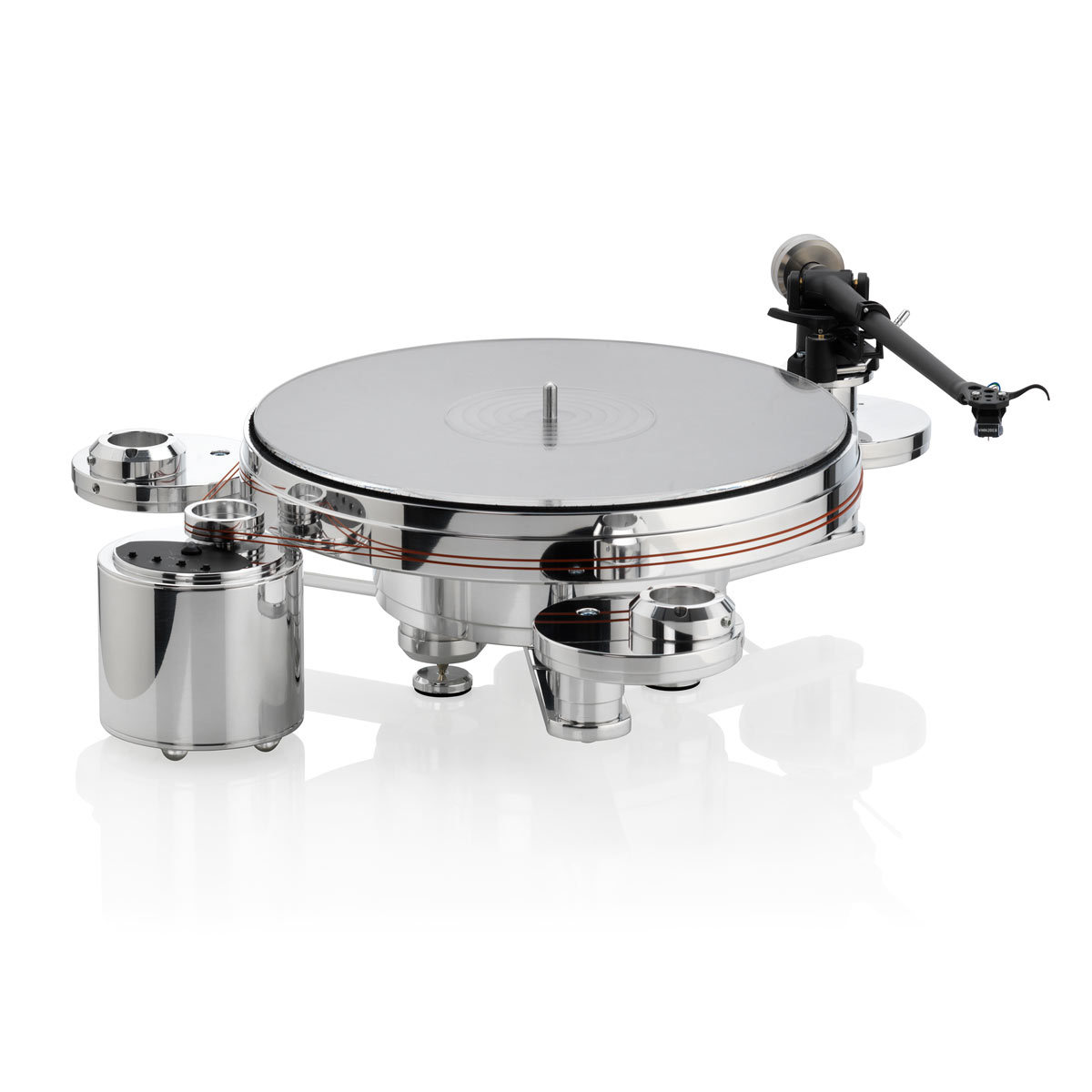

Acoustic Solid Solid 110 Metal New

Construction principle

Acoustically optimized drive shape
Base support plate 50 mm Ø 180mm and feet made of solid aluminum
Resonance-optimized and decoupled via special Teflon washers and silicone mixture dampers
Height adjustment via threaded spikes, decoupled via special felt feet

Speed ​​range

Convenient speed switching
at the touch of a button 33.3, 45 rpm
Fine adjustment + or – possible at any time at the push of a button

Bearing

Ground stainless steel axle
cast bushing, ruby ​​bearing base via special Teflon washers
Resonance optimized with polished ceramic ball

Drive

Berger Lahr synchronous motor with
belt drive
Belt made of nylon silicone mixture
Microprocessor controlled electronics

Turntable

Made of solid aluminum 7 kg turntable thickness 35 mm
CNC precision turned and hand polished

Turntable support

Support mat made of genuine leather
4mm plexiglass support

Synchronism

0.08% (measured with Ortofon measuring computer)

Electrics/Power supply

240 volts 47-63 Hz 0.4 amps
Output 32 volts 0.46 amps maximum
Switching power supply with cold device connector cable

Total weight

12 kg weight without tonearm

Weight

12 kg

Size

31 × 31 × 17 cm

Scope of delivery

1 record player

Material

Aluminum

Tonearm

WTB 370 including high-quality pickup system

Control

Microcontroller M2 with quartz generator and fine adjustment, plug and play
